The Kubernetes Gateway API is the next generation of Kubernetes Ingress, Load Balancing, and Service Mesh APIs — intended as a more expressive, role-oriented successor to Ingress and OpenShift Route objects. It separates concerns across three roles:

Role Resource Who manages it
Infrastructure Provider GatewayClass Cluster admin / cloud provider
Cluster Operator Gateway Platform team
Application Developer HTTPRoute / GRPCRoute / … App team

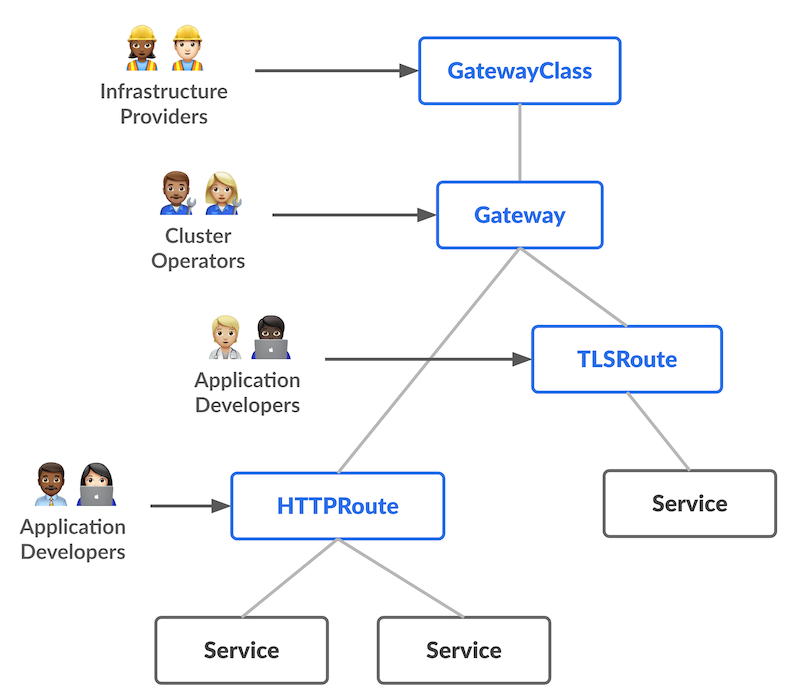

Gateway API resource model

Official documentation:

Red Hat Connectivity Link Tutorial

For a full end-to-end walkthrough covering TLS automation, OIDC auth, rate limiting, and observability on top of Gateway API, check out Nikolaus Lemberski's Connectivity Link 1.3 Tutorial. It uses Red Hat Connectivity Link (based on Kuadrant) to add TLSPolicy, AuthPolicy, and RateLimitPolicy on top of the Gateway API resources shown on this page.

Tested with:

Component Version
OpenShift v4.22.5

Create GatewayClass

GatewayClass
1
2
3
4
5
6
apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
  name: openshift-default
spec:
  controllerName: openshift.io/gateway-controller/v1

Create Gateway

Requires LoadBalancer service support

Creating a Gateway provisions a Kubernetes service of type LoadBalancer. On-premise clusters need MetalLB installed and configured — see On-premise gateway routing requirements.

RFE-8640 — "Support self-provisioned load balancers for Gateway API"

Create a TLS secret for the Gateway:

Create TLS secret
1
2
3
4
oc create secret tls gwapidefault-cert \
    -n openshift-ingress \
    --cert=cert_and_intermediate.pem \
    --key=cert-key.pem

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
kind: Gateway
apiVersion: gateway.networking.k8s.io/v1
metadata:
  name: default
  namespace: openshift-ingress
spec:
  gatewayClassName: openshift-default
  infrastructure:
    annotations:
      external-dns.alpha.kubernetes.io/hostname: '*.gwapi-default.ocp7.stormshift.coe.muc.redhat.com'
  listeners:
    - protocol: HTTP
      port: 80
      name: http
      allowedRoutes:
        namespaces:
          from: All
    - protocol: HTTPS
      port: 443
      name: https
      hostname: "*.gwapi-default.ocp7.stormshift.coe.muc.redhat.com"
      tls:
        mode: Terminate
        certificateRefs:
          - name: gwapidefault-cert
            kind: Secret
      allowedRoutes:
        namespaces:
          from: All

1
curl -L -O https://examples.openshift.pub/networking/gateway-api/gateway.yaml

1
oc apply -f https://examples.openshift.pub/networking/gateway-api/gateway.yaml

DNS setup

The wildcard hostname defined in the Gateway must have a DNS A record pointing to the external IP of the LoadBalancer service:

Verify Gateway and services
1
2
3
4
5
6
7
8
% oc get gateway,svc -n openshift-ingress
NAME                                        CLASS               ADDRESS         PROGRAMMED   AGE
gateway.gateway.networking.k8s.io/default   openshift-default   10.32.105.107   True         4d6h

NAME                                TYPE           CLUSTER-IP      EXTERNAL-IP     PORT(S)                                      AGE
service/default-openshift-default   LoadBalancer   172.30.169.90   10.32.105.107   15021:30288/TCP,80:31988/TCP,443:32360/TCP   3d23h
service/istiod-openshift-gateway    ClusterIP      172.30.3.90     <none>          15010/TCP,15012/TCP,443/TCP,15014/TCP        4d18h
service/router-internal-default     ClusterIP      172.30.22.81    <none>          80/TCP,443/TCP,1936/TCP                      12d

If you use the External DNS Operator, the LoadBalancer service already carries the annotation for automatic DNS provisioning:

External DNS annotation
1
2
3
4
% oc get svc/default-openshift-default -n openshift-ingress -o yaml
metadata:
  annotations:
    external-dns.alpha.kubernetes.io/hostname: '*.gwapi-default.ocp7.stormshift.coe.muc.redhat.com'

Otherwise, create the DNS record manually:

1
*.gwapi-default.ocp7 IN A 10.32.105.107

See also: Configuring DNS for on-premise gateways

Basic HTTPRoute example

Exposes a simple workload through the Gateway via an HTTPRoute.

Deploy the workload

1
oc apply -k 'https://github.com/openshift-examples/kustomize.git/components/simple-https?ref=2026-07-20'

Attach an HTTPRoute

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: simple-https
spec:
  parentRefs:
    - kind: Gateway
      name: default
      namespace: openshift-ingress
  hostnames:
    - "simple-https.gwapi-default.ocp7.stormshift.coe.muc.redhat.com"
  rules:
    - backendRefs:
        - name: simple-https
          port: 8080

1
curl -L -O https://examples.openshift.pub/networking/gateway-api/httproute.yaml

1
oc apply -f httproute.yaml

Verify the route is Accepted:

1
2
3
% oc get httproute -n test-app
NAME           HOSTNAMES                                                           AGE
simple-https   ["simple-https.gwapi-default.ocp7.stormshift.coe.muc.redhat.com"]   3h27m

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
% curl https://simple-https.gwapi-default.ocp7.stormshift.coe.muc.redhat.com/
<html>
<head></head>
<body>
<h1>Hi, 10.131.0.20</h1>
I'm a simple httpd+CGI webserver running in
pod <b>simple-https-79f5d5876b-w6vtf</b> on node <b>ocp7-worker-0</b>
responding at 2026-07-20 19:14:33 +0000
via <b>http</b>
</body>
</html>

Both HTTP and HTTPS work, but the backend always responds via plain HTTP — the Gateway terminates TLS and forwards unencrypted traffic to the pod.

Re-encrypt termination with BackendTLSPolicy

To encrypt traffic between the Gateway and the backend, use a BackendTLSPolicy.

See: Configuring re-encrypt termination with a BackendTLSPolicy

Known limitation: CA certificate key name mismatch

The BackendTLSPolicy spec requires the CA certificate in a ConfigMap key named exactly ca.crt. OpenShift's service-ca operator injects certificates with key service-ca.crt, and the trusted CA bundle injector uses ca-bundle.crt. Neither matches what BackendTLSPolicy expects.

Tracking issues and proposed solutions

Active RFEs / Tracking Issues

  • RFE-9174 — "CA Bundle Key Name Flexibility" — Approved, Priority: Critical. Primary RFE requesting configurable CA bundle key names for interop between OpenShift CA injection and BackendTLSPolicy.
  • OCPSTRAT-3459 — "CA Bundle Key Name Flexibility" — New, Priority: Critical. Strategic tracking issue under Networking, created July 2026.
  • RFE-8361 — "Setting the Gateway API controller to mount openshift-service-ca.crt" — Backlog. Original customer-filed RFE from October 2025.
  • gateway-api#4196 — Upstream feature request to support custom certificate key names.

Potential solutions being evaluated (from OCPSTRAT-3459)

  1. Upstream Gateway API change — Allow the gateway controller to accept a configurable key name
  2. Add service CA to the default trust bundle — No per-resource configuration needed
  3. Use ClusterTrustBundle — Newer Kubernetes API, requires k8s 1.37+
  4. Fallback-to-first-cert-in-configmap — Gateway controller uses the first certificate found regardless of key name
  5. OpenShift service-ca-operator change — Allow configuring the injected key name so it can inject as ca.crt

Workaround: create a ConfigMap with the correct key

Create a ConfigMap that copies the service CA content into a key named ca.crt:

1
2
oc get configmap openshift-service-ca.crt -n <namespace> -o jsonpath='{.data.service-ca\.crt}' \
  | oc create configmap my-openshift-service-ca.crt -n <namespace> --from-file=ca.crt=/dev/stdin

Warning

This ConfigMap will not auto-rotate when the service CA is renewed. You need external tooling (custom controller, CronJob, or GitOps template) to keep it in sync. Watch out for x509 formatting issues — trailing newlines or whitespace can cause certificate validation failures.

Apply the BackendTLSPolicy

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
apiVersion: gateway.networking.k8s.io/v1
kind: BackendTLSPolicy
metadata:
  name: simple-https
spec:
  targetRefs:
    - group: ""
      kind: Service
      name: simple-https
  validation:
    # System do not include openshift service serving root ca.
    # wellKnownCACertificates: "System"
    caCertificateRefs:
      - group: ""
        kind: ConfigMap
        name: my-openshift-service-ca.crt
    hostname: simple-https.test-app.svc

1
curl -L -O https://examples.openshift.pub/networking/gateway-api/backendtlspolicy.yaml

1
oc apply -f backendtlspolicy.yaml

Update the HTTPRoute for HTTPS backend

Change the backend port from 8080 to 8443:

HTTPRoute
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: simple-https
spec:
  parentRefs:
    - kind: Gateway
      name: default
      namespace: openshift-ingress
  hostnames:
    - "simple-https.gwapi-default.ocp7.stormshift.coe.muc.redhat.com"
  rules:
    - backendRefs:
        - group: ""
          kind: Service
          name: simple-https
          port: 8443

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
% curl https://simple-https.gwapi-default.ocp7.stormshift.coe.muc.redhat.com/
<html>
<head></head>
<body>
<h1>Hi, 10.128.2.98</h1>
I'm a simple httpd+CGI webserver running in
pod <b>simple-https-79f5d5876b-s276h</b> on node <b>ocp7-worker-1</b>
responding at 2026-07-21 14:14:18 +0000
via <b>https</b>
</body>
</html>

HTTPS work, and the backend always responds via HTTPS — the Gateway terminates TLS and forwards encrypted traffic to the pod.

Troubleshooting

Dump Envoy config

1
oc rsh deployment/default-openshift-default pilot-agent request GET /config_dump > default-openshift-default.json

Dump all endpoints

Forward the Envoy admin port:

1
oc port-forward deployment/default-openshift-default 15000:15000

List endpoints (filtered by namespace):

List endpoints
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
% curl -s 'http://localhost:15000/config_dump?include_eds' | jq -r '
    .configs[]
    | select(.["@type"]
    | contains("EndpointsConfigDump"))
    | .dynamic_endpoint_configs[]
    | .endpoint_config
    | .cluster_name as $cn
    | .endpoints[]?.lb_endpoints[]?.endpoint.address.socket_address
    | "\($cn) \(.address):\(.port_value)"
    ' | grep test-app
outbound|8080||simple-https.test-app.svc.cluster.local 10.128.2.99:8080
outbound|8080||simple-https.test-app.svc.cluster.local 10.131.0.24:8080
outbound|8443||simple-https.test-app.svc.cluster.local 10.128.2.99:8443
outbound|8443||simple-https.test-app.svc.cluster.local 10.131.0.24:8443

Filter by a specific cluster name:

Filter by cluster name
1
2
3
4
5
6
7
8
9
% curl -s 'http://localhost:15000/config_dump?include_eds' | jq -r '
    .configs[]
    | select(.["@type"] | contains("EndpointsConfigDump"))
    | .dynamic_endpoint_configs[]
    | .endpoint_config
    | select(.cluster_name | contains("demo-backend"))
    | .cluster_name as $cn
    | .endpoints[]?.lb_endpoints[]?.endpoint.address.socket_address
    | "\($cn) \(.address):\(.port_value)"'
