IBM Fusion Access SAN

Official documentation: Deploying IBM Fusion Access for SAN

Tested with:

Component Version
OpenShift v4.20.4
OpenShift Virt v4.20.x
IBM Fusion Access for SAN 2.12.0

Prerequisites

  • IBM account (IBMid). Create an account via https://www.ibm.com/account/reg/us-en/signup?formid=urx-19776
  • Access to IBM Storage Fusion, for example via the 60-day trial
  • IBM Entitlement key to allow your OpenShift cluster to pull images from IBM Registry: https://myibm.ibm.com/products-services/containerlibrary
  • OpenShift cluster with at least three worker nodes, each with ~32 GB memory
    • All nodes (at least 3) need a shared disk (via iSCSI, FC, or shared disks in a KVM lab).
    • RHEL 10 capable nodes (suppport of x86-64-v3). If not some Pods crash with Fatal glibc error: CPU does not support x86-64-v3
  • Access to a container registry for the GPFS kernel modules
    • Internal registry (requires registry storage)
    • External registry, for example quay.io with a private repository
  • If Secure Boot is enabled: Create and roll out your signing key. (IBM Fusion Access for SAN builds and loads its own kernel module via KMM)

Let's start the installation

If Secure Boot is enabled: Create and roll out your signing key

Documentation:

Create an key pair

Here are the commands executed on RHEL 10.

  • Create public and private key

    1
2
3
4
5
    efikeygen --dbdir /etc/pki/pesign \
  --self-sign \
  --module \
  --common-name 'CN=Organization signing key' \
  --nickname 'Custom Secure Boot key'

  • Export public key to sb_cert.cer

    1
2
3
4
    certutil -d /etc/pki/pesign \
  -n 'Custom Secure Boot key' \
  -Lr \
  > sb_cert.cer

  • Export private key to sb_cert.p12

    1
2
3
    pk12util -o sb_cert.p12 \
  -n 'Custom Secure Boot key' \
  -d /etc/pki/pesign

  • Export the unencrypted private key:

    1
2
3
4
5
    openssl pkcs12 \
  -in sb_cert.p12 \
  -out sb_cert.priv \
  -nocerts \
  -noenc

Roll out the public key

This may differ in your environment.

In my virtual lab environment running on KVM/libvirt with hetzner-ocp4:

  • Copy the public key to the VM via SSH

    1
    scp sb_cert.cer core@compute-X:~/

  • Check & import the key via mokutil on the node:

    1
2
3
4
5
6
7
8
    % sudo mokutil --list-enrolled | grep 'Subject:'
        Subject: O=Red Hat, Inc., CN=Red Hat Secure Boot CA 5/emailAddress=secalert@redhat.com
        Subject: CN=Red Hat Secure Boot CA 8/emailAddress=secalert@redhat.com

# Set a simple password; it will be needed later in the UEFI shell.
% sudo mokutil --import sb_cert.cer
input password:
input password again:

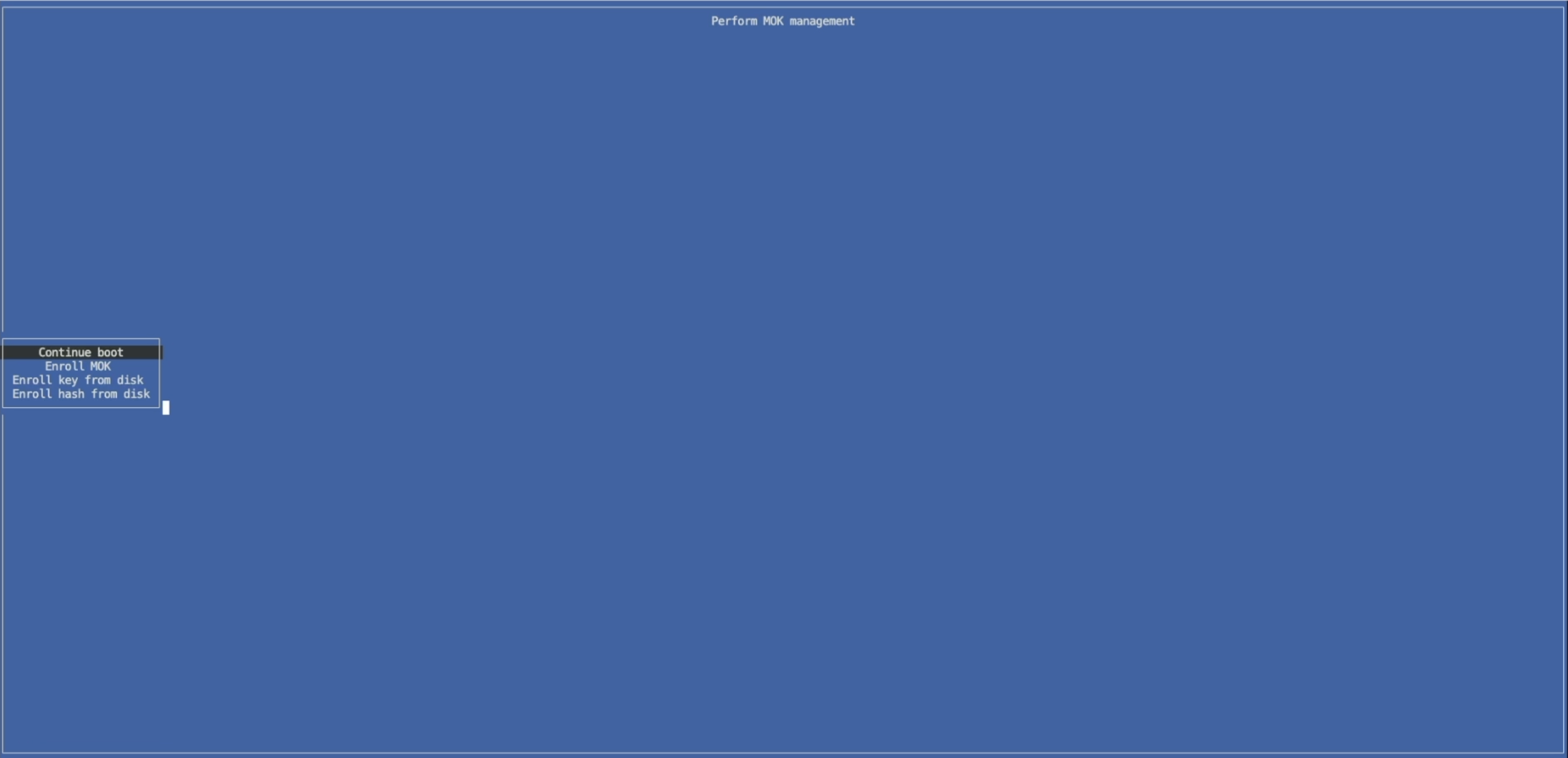

  • Reboot the node, enter the MOK manager, and enroll the key

  • Check the key via mokutil at the Node:

    1
2
3
4
    % mokutil --list-enrolled | grep 'Subject:'
        Subject: O=Red Hat, Inc., CN=Red Hat Secure Boot CA 5/emailAddress=secalert@redhat.com
        Subject: CN=Red Hat Secure Boot CA 8/emailAddress=secalert@redhat.com
        Subject: CN=Organization signing key

In case you want to run this in a disconnected/air-gapped environment

In a disconnected environment, you need to mirror the required container images to your local registry. This includes the IBM Fusion Access for SAN operator, the Kernel Module Management (KMM) operator, and the specific IBM Spectrum Scale images.

Mirroring images via oc-mirror v2

Use oc-mirror v2 to mirror the images.

Example imageset-configuration.yaml:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
kind: ImageSetConfiguration
apiVersion: mirror.openshift.io/v2alpha1
mirror:
  platform:
    channels:
    - name: stable-4.20
      type: ocp
      minVersion: 4.20.4
    graph: true
  operators:
  - catalog: registry.redhat.io/redhat/certified-operator-index:v4.20
    packages:
      - name: openshift-fusion-access-operator
        channels:
          - name: stable-v1
            minVersion: 1.1.0-1
  - catalog: registry.redhat.io/redhat/redhat-operator-index:v4.20
    packages:
    - name: kernel-module-management
      channels:
      - name: stable
        minVersion: '2.5.1'
  additionalImages:
    # Required for KMM & GPFS Build
    - name: registry.redhat.io/ubi9/ubi-minimal:latest
    # IBM Fusion Access for SAN images
    # Gathered from https://github.com/openshift-storage-scale/openshift-fusion-access-operator/tree/main/files
    - name: cp.icr.io/cp/gpfs/erasure-code/ibm-spectrum-scale-daemon@sha256:fa389056d2489eae1da98be08fc553806ad3817b2875329e51674134cc425f8a
    - name: cp.icr.io/cp/gpfs/data-management/ibm-spectrum-scale-daemon@sha256:07ae36c1a8539aee091cff19261aa14a9d220e6994132a14d2d8c537d596f9ec
    - name: cp.icr.io/cp/gpfs/data-access/ibm-spectrum-scale-daemon@sha256:539f31bb5691b636f2a7236b3fa617ba38e7ed35b7a3b1e71de5e84fd16f4d26
    - name: cp.icr.io/cp/gpfs/ibm-spectrum-scale-core-init@sha256:51dc287dd9ae2f8dcb60c1678fe8b535bb72e29faad24108d55b7cfe62362777
    - name: cp.icr.io/cp/gpfs/ibm-spectrum-scale-gui@sha256:57ea64cdd612aef7a5f01dfbd41677092c0f565c35ef7e5394e50799dc3796e1
    - name: cp.icr.io/cp/gpfs/postgres@sha256:0bcc5bbbb2aa9c9b4c6505845918c7eb55d783cf5c1f434fac33012579fb149d
    - name: cp.icr.io/cp/gpfs/ibm-spectrum-scale-logs@sha256:3b48c09f3641c10c63378a2dda806673fe7ea9c43774112f67bd8f8bd4e53b93
    - name: cp.icr.io/cp/gpfs/ibm-spectrum-scale-pmcollector@sha256:ad1e25622e325f4aa3000e680bd747bea50a22b65a8472cbc20640b730c86fa4
    - name: cp.icr.io/cp/gpfs/ibm-spectrum-scale-monitor@sha256:c77c0b3c6f7373136b581dabf2f57899c8a742d1cb4501d739af95cba151a438
    - name: cp.icr.io/cp/gpfs/ibm-spectrum-scale-grafana-bridge@sha256:b3b91b2f6729ecb3544b6b9fc539e2abbe425dfe497ce88deba7deed55305c7c
    - name: cp.icr.io/cp/gpfs/ibm-spectrum-scale-coredns@sha256:6a317b23fee629c0b07eb95d34ab7593bb38d41bffc5d1cd4cb2870539c66cd4
    - name: icr.io/cpopen/ibm-spectrum-scale-must-gather@sha256:798559d9dfabfbd2cca1224fde8f6b0cbc4c96fd9d01212ea07bfdb4e40c8818
    - name: cp.icr.io/cp/gpfs/csi/csi-snapshotter@sha256:5f4bb469fec51147ce157329dab598c758da1b018bad6dad26f0ff469326d769
    - name: cp.icr.io/cp/gpfs/csi/csi-attacher@sha256:69888dba58159c8bc0d7c092b9fb97900c9ca8710d088b0b7ea7bd9052df86f6
    - name: cp.icr.io/cp/gpfs/csi/csi-provisioner@sha256:d5e46da8aff7d73d6f00c761dae94472bcda6e78f4f17b3802dc89d44de0111b
    - name: cp.icr.io/cp/gpfs/csi/livenessprobe@sha256:2c5f9dc4ea5ac5509d93c664ae7982d4ecdec40ca7b0638c24e5b16243b8360f
    - name: cp.icr.io/cp/gpfs/csi/csi-node-driver-registrar@sha256:d7138bcc3aa5f267403d45ad4292c95397e421ea17a0035888850f424c7de25d
    - name: cp.icr.io/cp/gpfs/csi/csi-resizer@sha256:8ddd178ba5d08973f1607f9b84619b58320948de494b31c9d7cd5375b316d6d4
    - name: cp.icr.io/cp/gpfs/csi/ibm-spectrum-scale-csi-driver@sha256:711f9fc45969639da712b0823139549cdbedead0be9453c4243e1a873e7737f1
    - name: icr.io/cpopen/ibm-spectrum-scale-csi-operator@sha256:2c2e9c630a45da80321bbf1b63e9152e0cb7cc14390ee3879fd736e0a6974464
    - name: icr.io/cpopen/ibm-spectrum-scale-operator@sha256:6dcb6ca5430deea044cfd029df4a9f0576586e824af07d9c61f4630ee4798e11

Extracting image names for a specific version

To get the exact list of images for a different version, you can use this one-liner:

1
2
export VERSION=v5.2.3.5
curl -s https://raw.githubusercontent.com/openshift-storage-scale/openshift-fusion-access-operator/refs/heads/main/files/${VERSION}/install.yaml | grep -i -e "icr.io" -e "quay.io" | awk '{ print "  - name: "  $2 }' | sort -u

Applying the mirrored configuration

After mirroring, apply the generated CatalogSource, ImageContentSourcePolicy (or ImageDigestMirrorSet), and ImageTagMirrorSet as usual.

Important: Internal Registry for Kernel Module Builds

IBM Fusion Access for SAN uses KMM to build kernel modules on the fly. In a disconnected environment, you must provide a registry where KMM can push the newly built images and where the nodes can pull them from.

Refer to the Configure external registry for kernel module container image section for details on how to set this up. In a disconnected environment, this "external" registry would be your local/internal registry (e.g., Quay, Harbor, or the OpenShift integrated registry).

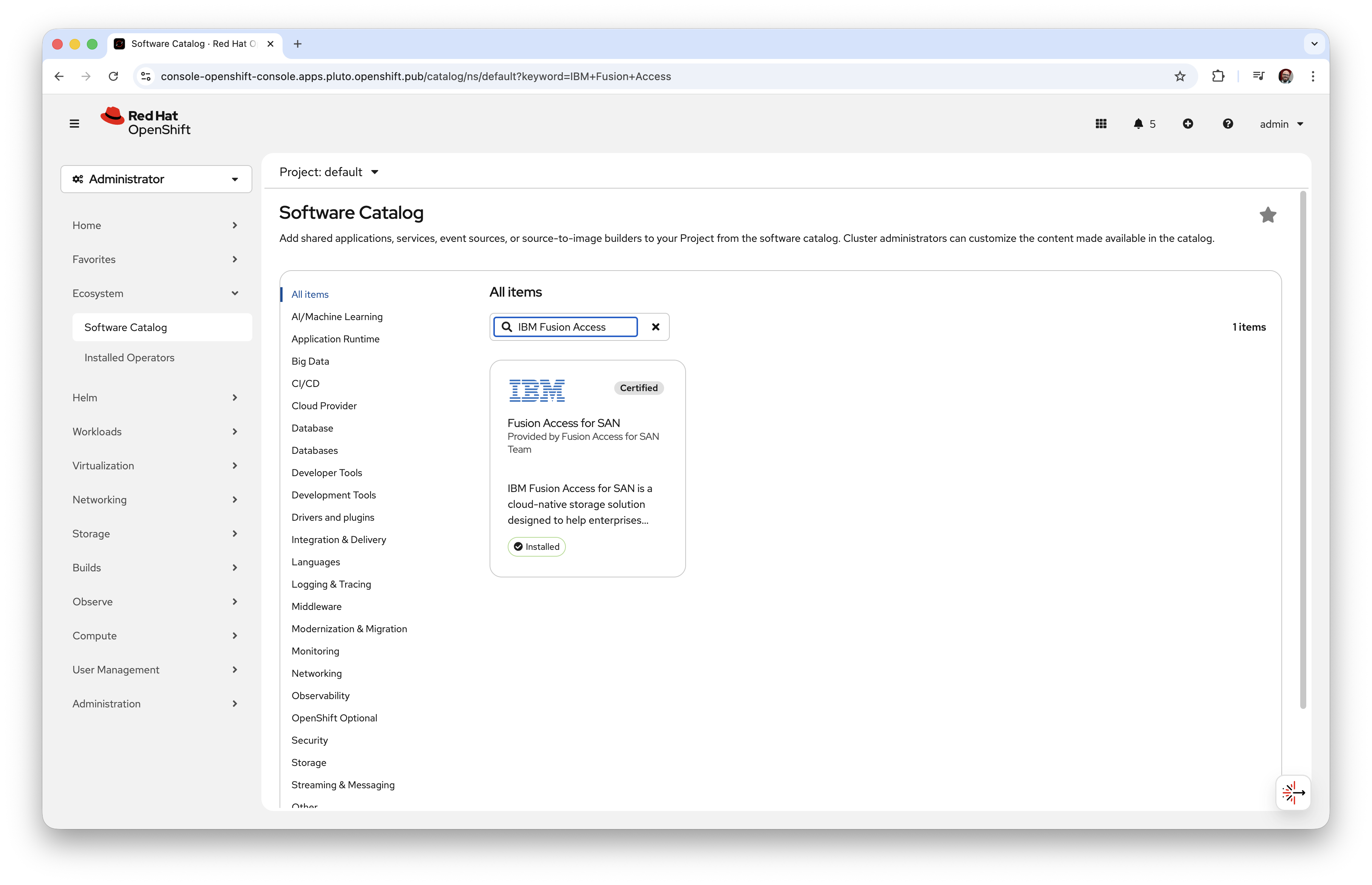

Install IBM Fusion Access for SAN operator

https://www.ibm.com/docs/en/fusion-software/2.12.0?topic=san-installing-fusion-access-operator

Do NOT create the FusionAccess custom resource yet!

At this point there is a YouTube video available that does not cover Secure Boot or an external registry.

Create a pull secret with IBM Entitlement Key

You can get/review the entitlement keys at the IBM Container library

1
2
oc create secret -n ibm-fusion-access generic fusion-pullsecret \
--from-literal=ibm-entitlement-key=<ibm-entitlement-key>

If Secure Boot is enabled: provide signing key

Create the key pair in the earlier section If Secure Boot is enabled: Create and roll out your signing key, then create the following secrets:

  • Private key

    1
2
3
    oc create secret generic secureboot-signing-key \
  -n ibm-fusion-access \
  --from-file=key=sb_cert.priv

  • Public key

    1
2
3
    oc create secret generic secureboot-signing-key-pub \
  -n ibm-fusion-access \
  --from-file=cert=sb_cert.cer

Optional: Configure external registry for kernel module container image

  • Create ConfigMap with external registry information:

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
    apiVersion: v1
kind: ConfigMap
metadata:
  name: kmm-image-config
  namespace: ibm-fusion-access
data:
  kmm_image_registry_url: quay.io
  kmm_image_repo: rbohne/kernel-ibm-fusion-access
  # kmm_tls_insecure: "false"
  # kmm_tls_skip_verify: "false"

  # Contains the Red Hat pull secret and the secret used to push
  kmm_image_registry_secret_name: rbohne-robot-kernel-ibm-fusion-access-pull-secret

  • Provide push secret to quay.io

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
    apiVersion: v1
kind: Secret
metadata:
name: rbohne-robot-kernel-ibm-fusion-access-pull-secret
namespace: ibm-fusion-access
stringData:
.dockerconfigjson: |
    {
    "auths": {
        "quay.io/rbohne/kernel-ibm-fusion-access": {
        "auth": "...",
        "email": "..."
        }
    }
    }
type: kubernetes.io/dockerconfigjson

    Note

    It's important to be as specific as possible here. If I only specify quay.io, the pull secret will also be used for pulling OpenShift images, which will then cause the build to fail.

Creating the FusionAccess custom resource

https://www.ibm.com/docs/en/fusion-software/2.12.0?topic=san-creating-fusionaccess-cr

Wait until the Web Console plugin is available to create the storage cluster.

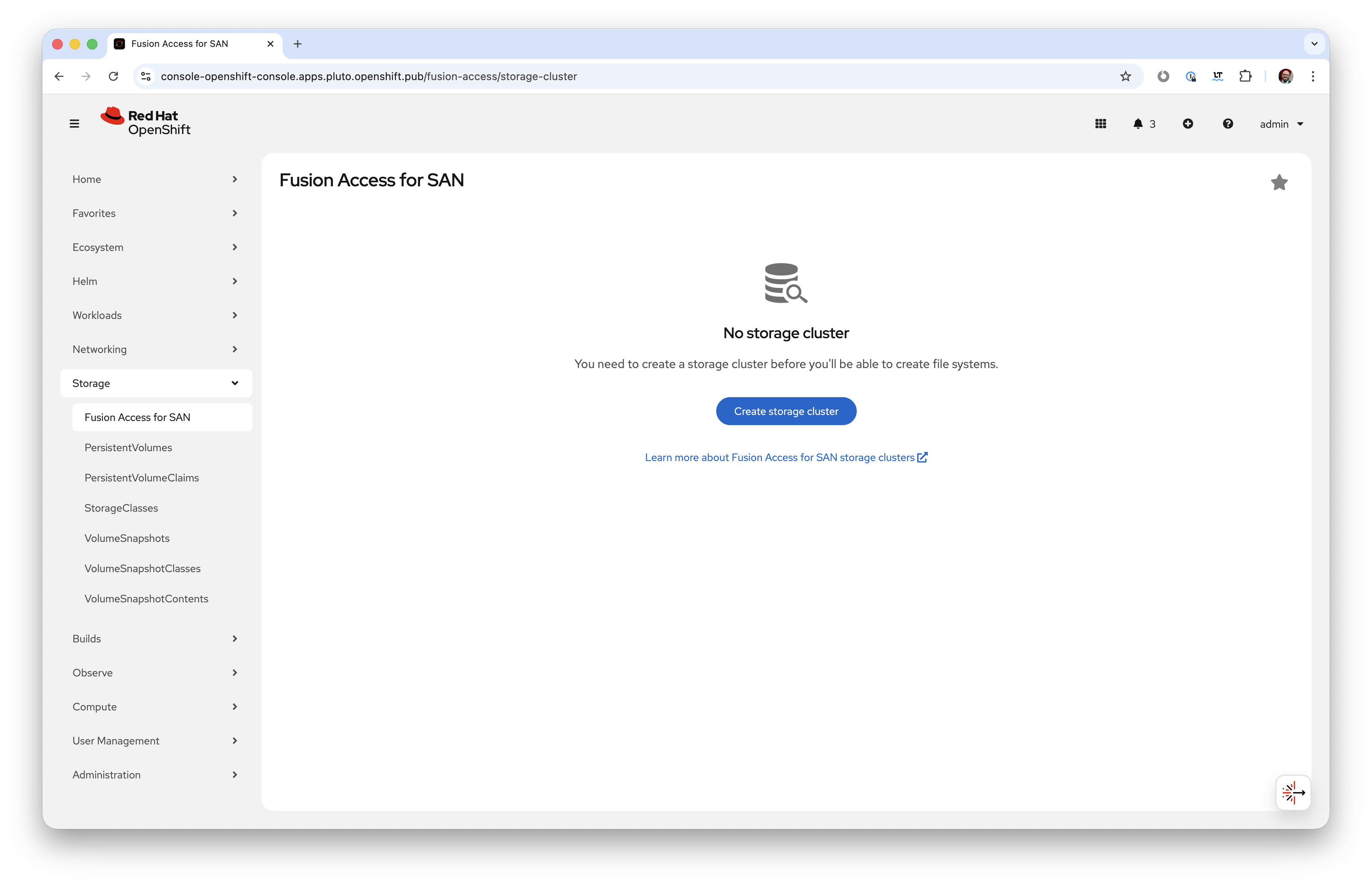

Creating a storage cluster

https://www.ibm.com/docs/en/fusion-software/2.12.0?topic=san-creating-storage-cluster

After creating the storage cluster, it's building the kernel module container image. Check builds in ibm-fusion-access project.

Check the pods in the following projects:

  • ibm-fusion-access
  • ibm-spectrum-scale

To check which devices are found, you can run:

1
oc describe LocalVolumeDiscoveryResult -n ibm-fusion-access

Or check the pod logs of the following pods:

1
oc get pods -l app=devicefinder-discovery -o wide -n ibm-fusion-access

To check the kernel module build settings, look at:

1
oc get module -n ibm-fusion-access gpfs-module -o yaml

Here's an example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
apiVersion: kmm.sigs.x-k8s.io/v1beta1
kind: Module
metadata:
  finalizers:
    - kmm.node.kubernetes.io/module-finalizer
  name: gpfs-module
  namespace: ibm-fusion-access
spec:
  imageRepoSecret:
    name: kmm-registry-push-pull-secret
  moduleLoader:
    container:
      imagePullPolicy: Always
      inTreeModuleToRemove: ''
      kernelMappings:
        - build:
            baseImageRegistryTLS: {}
            buildArgs:
              - name: IBM_SCALE
                value: 'cp.icr.io/cp/gpfs/ibm-spectrum-scale-core-init@sha256:51dc287dd9ae2f8dcb60c1678fe8b535bb72e29faad24108d55b7cfe62362777'
            dockerfileConfigMap:
              name: kmm-dockerfile
          containerImage: 'quay.io/rbohne/kernel-ibm-fusion-access:${KERNEL_FULL_VERSION}-51dc287dd9ae2f8dcb60c1678fe8b535'
          inTreeModuleToRemove: ''
          literal: ''
          regexp: ^.*\.x86_64$
          sign:
            certSecret:
              name: secureboot-signing-key-pub
            filesToSign:
              - '/opt/lib/modules/${KERNEL_FULL_VERSION}/mmfslinux.ko'
              - '/opt/lib/modules/${KERNEL_FULL_VERSION}/mmfs26.ko'
              - '/opt/lib/modules/${KERNEL_FULL_VERSION}/tracedev.ko'
            keySecret:
              name: secureboot-signing-key
            unsignedImageRegistryTLS: {}
      modprobe:
        dirName: /opt
        firmwarePath: /opt/lxtrace/
        moduleName: mmfs26
        modulesLoadingOrder:
          - mmfs26
          - mmfslinux
          - tracedev
      registryTLS: {}
    serviceAccountName: fusion-access-operator-controller-manager
  selector:
    kubernetes.io/arch: amd64
    scale.spectrum.ibm.com/role: storage
status:
  devicePlugin: {}
  moduleLoader:
    nodesMatchingSelectorNumber: 3

To watch the build logs:

1
oc get builds -n ibm-fusion-access -l node.kubernetes.io/module.name=gpfs-module -l app.kubernetes.io/name=kmm

After a successful build, the build objects disappear.

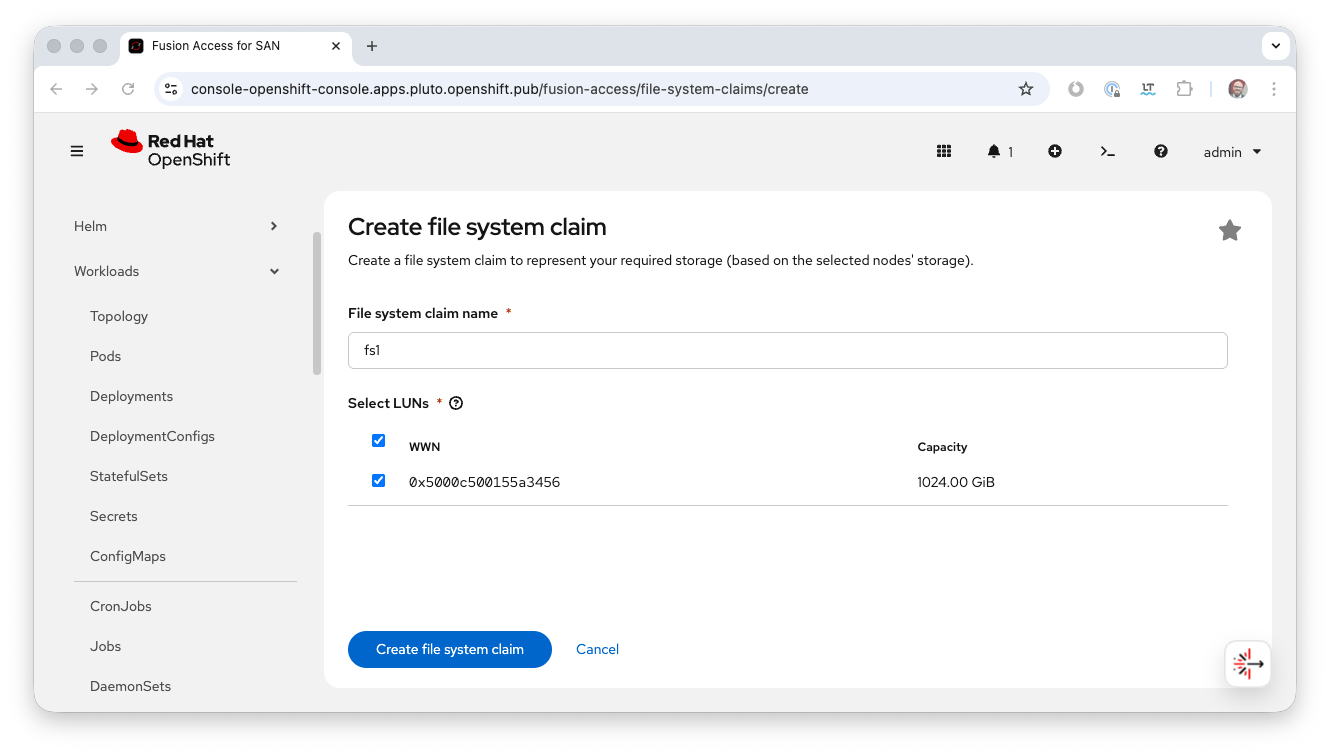

Creating a filesystem

https://www.ibm.com/docs/en/fusion-software/2.12.0?topic=san-creating-filesystem

Check the details of the FileSystem if it takes too long.

In case you recognize the following message:

Disk has Spectrum Scale filesystem data structures on it. Set the 'existingDataSkipVerify' spec-parameter of the LocalDisk 0x5000c500155a3456 to true if the disk should be formatted and re-used nevertheless.

Check the LocalDisk:

1
2
3
% oc get LocalDisk -n ibm-spectrum-scale
NAME                 TYPE   READY   USED    AVAILABLE   FILESYSTEM   SIZE   AGE
0x5000c500155a3456          False   False   Unknown                         26m

If you are sure the shared disk can be wiped, set existingDataSkipVerify to true:

1
oc patch LocalDisk -n ibm-spectrum-scale 0x5000c500155a3456 --type merge -p '{"spec":{"existingDataSkipVerify":true}}'

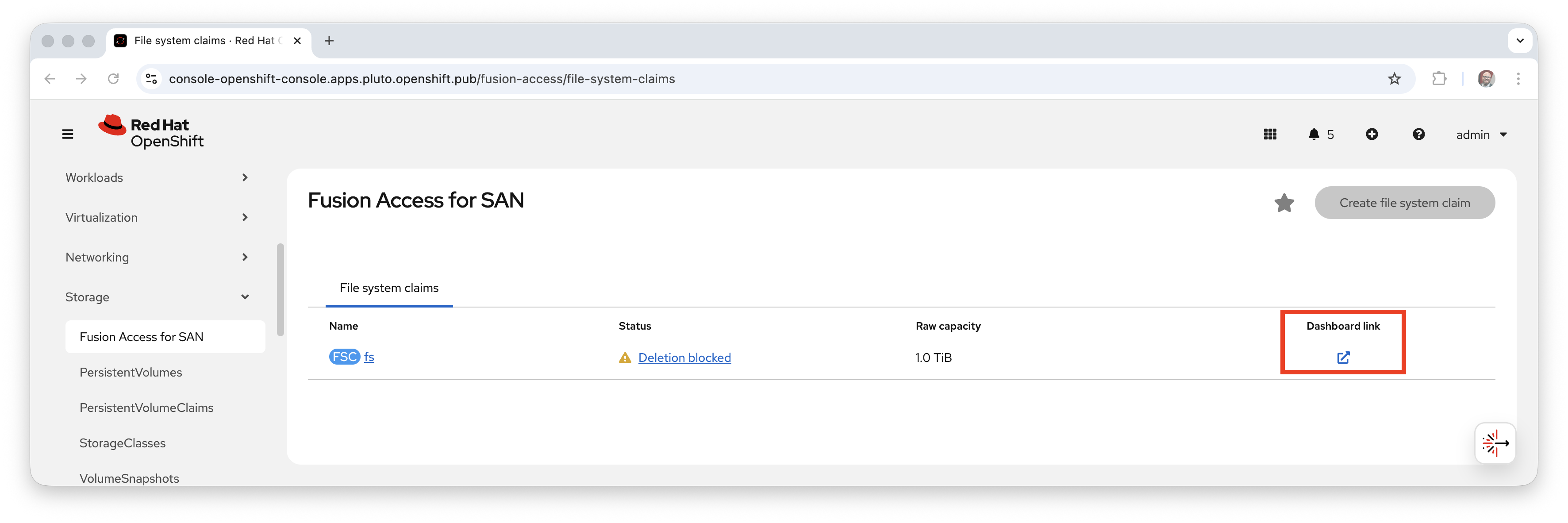

Don't forget to review the IBM Fusion dashboard

Notes for various lab environments

Add a shared disk to all worker nodes.

Plain KVM environment

I deployed via hetzner-ocp4. Now let's add a shared LVM disk because everything is running on one node.

Info

The following issue is related to Secure Boot:

1
2
3
4
5
6
7
I0105 18:25:24.083670 1 funcs_kmod.go:12] "Starting worker" logger="kmm-worker" version="" git commit=""
I0105 18:25:24.083696 1 funcs_kmod.go:24] "Reading config" logger="kmm-worker" path="/etc/kmm-worker/config.yaml"
I0105 18:25:24.083968 1 worker.go:77] "preparing firmware for loading" logger="kmm-worker" image directory="/tmp/opt/lxtrace" host mount directory="/var/lib/firmware"
I0105 18:25:24.084219 1 modprobe.go:33] "Running modprobe" logger="kmm-worker" command="/usr/sbin/modprobe -vd /tmp/opt mmfs26"
I0105 18:25:24.086346 1 cmdlog.go:70] "modprobe: ERROR: could not insert 'mmfs26': Key was rejected by service" logger="kmm-worker.modprobe.stderr"
I0105 18:25:24.086394 1 cmdlog.go:70] "insmod /tmp/opt/lib/modules/5.14.0-570.72.1.el9_6.x86_64/tracedev.ko " logger="kmm-worker.modprobe.stdout"
E0105 18:25:24.086679 1 cmdutils.go:11] "Fatal error" err="error while waiting on the command: exit status 1" logger="kmm-worker"

Two options to solve:

  • Disable Secure Boot
  • Work with a KMM signing key / Machine Owner Key (MOK), documented above.
1
lvcreate -L1T -n fusion vg0

1
2
3
4
export CLUSTER_NAME=pluto
for node in ${CLUSTER_NAME}-compute-0  ${CLUSTER_NAME}-compute-1  ${CLUSTER_NAME}-compute-2 ; do
    virsh attach-disk $node /dev/mapper/vg0-fusion sdb --targetbus scsi --cache none --persistent --live --wwn 5000c500155a3456
done

iSCSI & RHCOS

This is ugly as hell, but works for quick testing.

1
oc apply -f https://examples.openshift.pub/storage/ibm-fusion-access-san/iscsi-helper.yaml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
---
apiVersion: v1
kind: Namespace
metadata:
  name: iscsi-helper
spec: {}
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: iscsi-helper
  namespace: iscsi-helper
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: system:openshift:scc:privileged
  namespace: iscsi-helper
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:openshift:scc:privileged
subjects:
  - kind: ServiceAccount
    name: iscsi-helper
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: iscsi-helper
  namespace: iscsi-helper
spec:
  selector:
    matchLabels:
      name: iscsi-helper
  template:
    metadata:
      annotations:
        openshift.io/required-scc: "privileged"
      labels:
        name: iscsi-helper
    spec:
      nodeSelector:
        node-role.kubernetes.io/worker: ""
      serviceAccountName: iscsi-helper
      tolerations:
        - key: "node-role.kubernetes.io/master"
          operator: "Exists"
          effect: "NoSchedule"
      containers:
        - name: iscsi-helper
          image: registry.access.redhat.com/ubi10-micro:10.1
          securityContext:
            privileged: true
            capabilities:
              add:
                - SYS_CHROOT
            runAsGroup: 0
            runAsUser: 0
          env:
            - name: ISCSI_HELPER_TARGET
              value: "iqn.1992-08.com.netapp:sn.4f0586e4962411efb20d00a0987cd31a:vs.19"
          command:
            - /usr/sbin/chroot
            - /host
            - sh
            - -c
            - |

              iscsiadm --mode discovery --op update --type sendtargets --portal   10.32.97.20
              for i in $(seq 20 23); do  iscsiadm -m node --targetname ${ISCSI_HELPER_TARGET} -p 10.32.97.${i} --login ; done

              multipath -ll
              sleep infinity
          volumeMounts:
            - name: host-root
              mountPath: /host
              readOnly: false
      hostNetwork: true
      hostPID: true
      hostIPC: true
      volumes:
        - name: host-root
          hostPath:
            path: /
            type: Directory
2026-02-06 2025-12-30 Contributors: Robert Bohne
