Cross cluster live migration

Official documentation: 12.5. Configuring a cross-cluster live migration network

Tested with:

Component Version
OpenShift v4.20.4
OpenShift Virt v4.20.1
MTV v2.10.0

Without ACM, just a pure cross cluster live migration with two OpenShift clusters.

Cluster overview

We have two identicial clusters in terms of

  • OpenShift Version
  • CPU Type and Model

Cluster one called OCP1 is the target cluster with mtv. Cluster two called OCP7 is the source cluster.

This cluster are running on bare OpenShift Cluster called ISAR.

Details about the OCP1 & OCP7 adjustments at ISAR

OCP1 and OCP7 are provided via our stormshift automation

OCP1 & OCP7 Infrastructure details

Patch the cpu model

1
oc get vm -o name | xargs oc patch  --type=merge -p '{"spec":{"template":{"spec":{"domain":{"cpu":{"model":"Haswell-v4"}}}}}}'

Enable VT-X/vmx feature

1
oc get vm -o name | xargs oc patch  --type=merge -p '{"spec":{"template":{"spec":{"domain":{"cpu":{"features":[{"name":"vmx","policy":"require"}]}}}}}}'

Restart all VM's

1
oc get vm --no-headers -o custom-columns="NAME:.metadata.name" | xargs -n1 virtctl restart

Check setttings as ISAR

1
oc get vm -o custom-columns=NAME:.metadata.name,CPU:.spec.template.spec.domain.cpu

1
2
3
4
5
6
7
8
oc get vm -o custom-columns=NAME:.metadata.name,CPU:.spec.template.spec.domain.cpu
NAME            CPU
ocp1-cp-0       map[cores:8 features:[map[name:vmx policy:require]] model:Haswell-v4 sockets:1 threads:1]
ocp1-cp-1       map[cores:8 features:[map[name:vmx policy:require]] model:Haswell-v4 sockets:1 threads:1]
ocp1-cp-2       map[cores:8 features:[map[name:vmx policy:require]] model:Haswell-v4 sockets:1 threads:1]
ocp1-worker-0   map[cores:8 features:[map[name:vmx policy:require]] model:Haswell-v4 sockets:1 threads:1]
ocp1-worker-1   map[cores:8 features:[map[name:vmx policy:require]] model:Haswell-v4 sockets:1 threads:1]
ocp1-worker-2   map[cores:8 features:[map[name:vmx policy:require]] model:Haswell-v4 sockets:1 threads:1]

Add second interface into vlan 2001 for the VM's/nodes

1
2
oc apply -n stormshift-ocp1-infra -f https://examples.openshift.pub/kubevirt/livemigration/cclm/cclm/isar-2001-net-attach-def.yaml
oc apply -n stormshift-ocp7-infra -f https://examples.openshift.pub/kubevirt/livemigration/cclm/cclm/isar-2001-net-attach-def.yaml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:
  annotations:
    k8s.v1.cni.cncf.io/resourceName: bridge.network.kubevirt.io/coe-bridge
  name: coe-bridge-2001
spec:
  config: |
    {
      "name": "coe-bridge",
      "type": "bridge",
      "cniVersion": "0.3.1",
      "bridge": "coe-bridge",
      "macspoofchk": false,
      "ipam": {},
      "vlan": 2001,
      "preserveDefaultVlan": false
    }

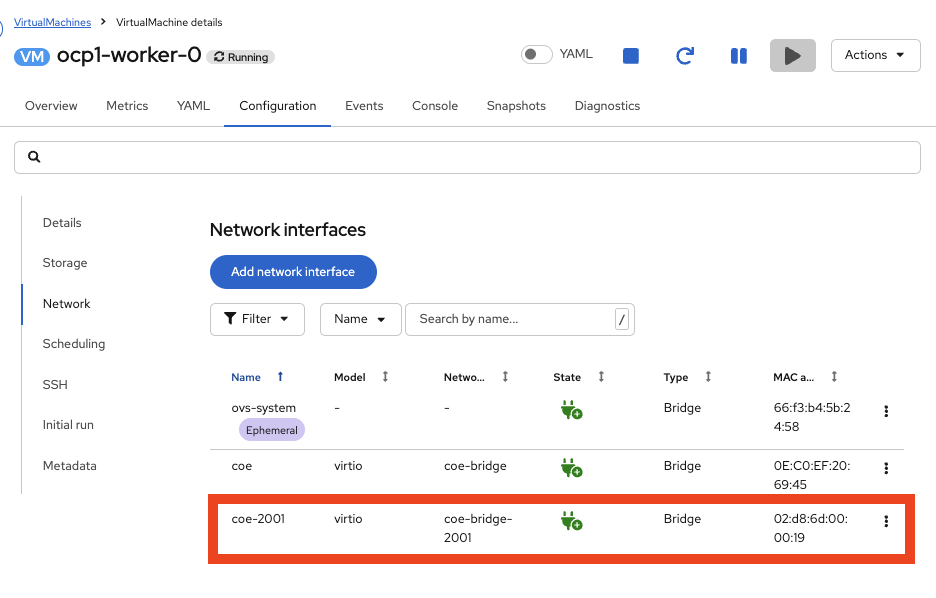

Adjust VM's to add second interface to worker nodes:

OCP1 and OCP7 cluster preperation

Install following operators

  • Nmstate Operator (instantiate the operator now)
  • OpenShift Virtualization (instantiate the operator LATER!)
  • Migration Toolkit for Virtualization (instantiate the operator LATER!)

Prepare required live migration network

Both clusters have to be connected via an L2 network. In my case it's vlan 2001 with `192.168.201.0/24 subnet

Here an high level overview:

There is an documetion bug in the offical docs

https://issues.redhat.com/browse/CNV-74609

NodeNetworkConfigurationPolicy for linux bridge into VLAN 2001

Apply this to OCP1 and OCP7

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
apiVersion: nmstate.io/v1
kind: NodeNetworkConfigurationPolicy
metadata:
  name: br-2001-via-enp2s0
spec:
  desiredState:
    interfaces:
      - bridge:
          options:
            stp:
              enabled: false
          port:
            - name: enp2s0
        description: Linux Brige info COE Network via enp2s0
        ipv4:
          enabled: false
        name: br-2001
        state: up
        type: linux-bridge
  nodeSelector:
    node-role.kubernetes.io/worker: ""

1
oc apply -f https://examples.openshift.pub/kubevirt/livemigration/cclm/cclm/coe-bridge-via-enp2s0.yaml
NetworkAttachmentDefinition for OCP1 and OCP7

Little helper for find out the interfaces on the nodes:

1
oc get nodes -l node-role.kubernetes.io/worker -o name | while read line ; do echo "# $line";oc debug -q $line -- ip -br l | grep enp ; done

Apply this to OCP1

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:
  name: livemigration-network
  namespace: openshift-cnv
spec:
  config: |
    {
      "cniVersion": "0.3.1",
      "name": "migration-bridge",
      "type": "macvlan",
      "bridge": "br-2001",
      "mode": "bridge",
      "ipam": {
        "type": "whereabouts",
        "range": "192.168.201.0/24",
        "exclude": [
           "192.168.201.0/25"
        ]
      }
    }

1
oc apply -f https://examples.openshift.pub/kubevirt/livemigration/cclm/cclm/ocp1.net-attach-def.yaml

Apply this to OCP7

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:
  name: livemigration-network
  namespace: openshift-cnv
spec:
  config: |
    {
      "cniVersion": "0.3.1",
      "name": "migration-bridge",
      "type": "macvlan",
      "bridge": "br-2001",
      "mode": "bridge",
      "ipam": {
        "type": "whereabouts",
        "range": "192.168.201.0/24",
        "exclude": [
           "192.168.201.128/25"
        ]
      }
    }

1
oc apply -f https://examples.openshift.pub/kubevirt/livemigration/cclm/cclm/ocp7.net-attach-def.yaml

Instantiate the operator

OpenShift Virtualization on OCP1 and OCP7

Instantiate with following changes:

1
2
3
4
5
spec:
  liveMigrationConfig:
    network: livemigration-network
  featureGates:
    decentralizedLiveMigration: true

Wait until virt-synchronization-controller-xxx pods are running:

1
oc get pods -n openshift-cnv -l kubevirt.io=virt-synchronization-controller

1
2
3
4
% oc get pods -n openshift-cnv -l kubevirt.io=virt-synchronization-controller
NAME                                               READY   STATUS    RESTARTS   AGE
virt-synchronization-controller-5b58bd4478-5l25n   1/1     Running   0          3d21h
virt-synchronization-controller-5b58bd4478-zwpn4   1/1     Running   0          3d21h

Optional: Check the virt-handler migration network configuration:

1
2
3
4
5
% oc project openshift-cnv
% oc get pods -l kubevirt.io=virt-handler  -o name | while read line ; do oc exec -q $line -- /bin/sh -c 'echo -n "$HOSTNAME $NODE_NAME "; ip -4 -br a show dev migration0' ; done
virt-handler-dm5mh ocp1-worker-2 migration0@if9   UP             192.168.201.129/24
virt-handler-h6bn9 ocp1-worker-1 migration0@if9   UP             192.168.201.131/24
virt-handler-nndkq ocp1-worker-0 migration0@if9   UP             192.168.201.130/24

1
2
3
4
5
% oc project openshift-cnv
% oc get pods -l kubevirt.io=virt-handler  -o name | while read line ; do oc exec -q $line -- /bin/sh -c 'echo -n "$HOSTNAME $NODE_NAME "; ip -4 -br a show dev migration0' ; done
virt-handler-bjwvt ocp7-worker-1 migration0@if9   UP             192.168.201.3/24
virt-handler-gl8gs ocp7-worker-0 migration0@if9   UP             192.168.201.1/24
virt-handler-kxg7k ocp7-worker-2 migration0@if8   UP             192.168.201.4/24

Migration toolkit for Virtualization on OCP1

Instantiate with following change:

1
2
spec:
  feature_ocp_live_migration: 'true'

Migration toolkit for Virtualization

Create provide at OCP1

Create service account and token at OCP7

Create clusterrole live-migration-role

1
oc apply  -f https://examples.openshift.pub/kubevirt/livemigration/cclm/cclm/clusterrole.yaml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
oc create namespace openshift-mtv
oc create serviceaccount cclm -n openshift-mtv
oc create clusterrolebinding cclm --clusterrole=live-migration-role --serviceaccount=openshift-mtv:cclm
oc apply -f - <<EOF
apiVersion: v1
kind: Secret
metadata:
  name: cclm
  namespace: openshift-mtv
  annotations:
    kubernetes.io/service-account.name: cclm
type: kubernetes.io/service-account-token
EOF

Get the token:

1
oc get secret "cclm" -n "openshift-mtv" -o  go-template='{{ .data.token | base64decode}}{{"\n"}}'

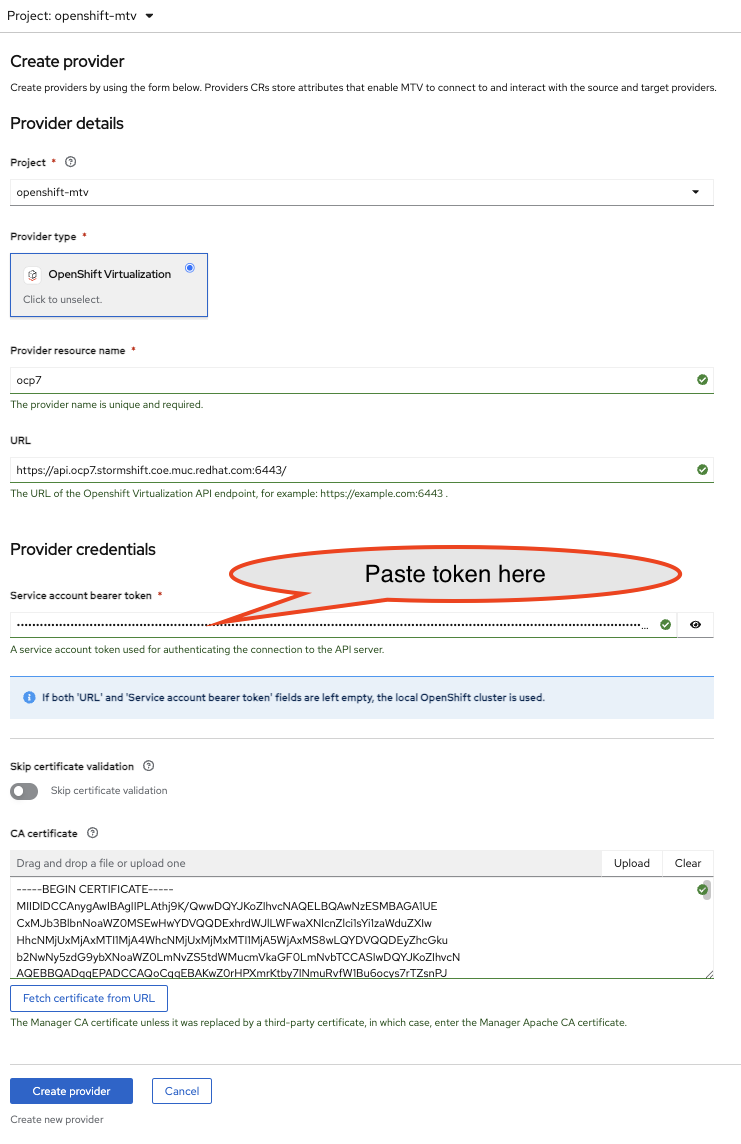

Add provider ocp7 to OCP1

Run a cross cluster live migration

Resources

2025-12-03 2025-12-03 Contributors: Robert Bohne
