KubeVirt CSI Driver Installation

Official Repository:

• KubeVirt CSI Driver

Important

This CSI driver is made for a tenant cluster deployed on top of kubevirt VMs, and enables it to get its persistent data from the underlying, infrastructure cluster. To avoid confusion, this CSI driver is deployed on the tenant cluster, and does not require kubevirt installation at all.

Controller deployment on the Infra-Cluster

• Create a Secret within the tenant-cluster project/namespace which contains the kube config of your tenant-cluster:

export OCP42PATH='/Users/rguske/dev/openshift/openshift-on-openshift/rguske-ocp42/conf'

oc create secret generic kvcluster-kubeconfig --from-file=value=$OCP42PATH/rguske-ocp42-kubeconfig

• Label the virtualized nodes (vms) accordingly so that the CSI Driver can pick up the labels in order to operate:

for vm in $(oc get vms -o jsonpath='{.items[*].metadata.name}'); do echo ${vm} ; oc label vm/${vm}  csi-driver/cluster="rguske-ocp42" ; done

• Create a ConfigMap within the tanant-cluster project which the KubeVirt CSI Controller is using to identify the tenant-cluster name via the label as well as the tenant-cluster namespace:

oc apply -f - <<EOF
apiVersion: v1
kind: ConfigMap
metadata:
  name: driver-config
data:
  infraClusterNamespace: rguske-ocp42
  infraClusterLabels: csi-driver/cluster=rguske-ocp42
EOF

• Within the tenant-cluster namespace, create the ServiceAccount as well as the controller:

Downloadinfra-cluster-serviceaccount

curl -L -O https://examples.openshift.pub/kubevirt/kubevirt-csi-driver/kubevirt-csi//infra-cluster-serviceaccount.yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  name: kubevirt-csi
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: kubevirt-csi
rules:
  - apiGroups: ["cdi.kubevirt.io"]
    resources: ["datavolumes"]
    verbs: ["get", "create", "delete"]
  - apiGroups: ["kubevirt.io"]
    resources: ["virtualmachineinstances"]
    verbs: ["list", "get"]
  - apiGroups: ["kubevirt.io"]
    resources: ["virtualmachines"]
    verbs: ["list", "get", "watch"]
  - apiGroups: ["subresources.kubevirt.io"]
    resources:
      - "virtualmachines/addvolume"
      - "virtualmachines/removevolume"
    verbs: ["update"]
  - apiGroups: ["subresources.kubevirt.io"]
    resources: ["virtualmachineinstances/addvolume", "virtualmachineinstances/removevolume"]
    verbs: ["update"]
  - apiGroups: ["snapshot.storage.k8s.io"]
    resources: ["volumesnapshots"]
    verbs: ["get", "create", "delete"]
  - apiGroups: [""]
    resources: ["persistentvolumeclaims"]
    verbs: ["get"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: kubevirt-csi
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: kubevirt-csi
subjects:
  - kind: ServiceAccount
    name: kubevirt-csi

oc -n $NAMESPACE apply -f infra-cluster-serviceaccount.yaml

Downloadcontroller-infra

curl -L -O https://examples.openshift.pub/kubevirt/kubevirt-csi-driver/kubevirt-csi//controller-infra.yaml

kind: Deployment
apiVersion: apps/v1
metadata:
  name: kubevirt-csi-controller
#  namespace: kubevirt-csi-driver
  labels:
    app: kubevirt-csi-driver
spec:
  replicas: 1
  selector:
    matchLabels:
      app: kubevirt-csi-driver
  template:
    metadata:
      labels:
        app: kubevirt-csi-driver
    spec:
      enableServiceLinks: false
      serviceAccount: kubevirt-csi
      priorityClassName: system-cluster-critical
      nodeSelector:
        node-role.kubernetes.io/control-plane: ""
      tolerations:
        - key: CriticalAddonsOnly
          operator: Exists
        - key: node-role.kubernetes.io/master
          operator: Exists
          effect: "NoSchedule"
      containers:
        - name: csi-driver
          imagePullPolicy: Always
          image: quay.io/kubevirt/kubevirt-csi-driver:latest
          args:
            - "--endpoint=$(CSI_ENDPOINT)"
            - "--infra-cluster-namespace=$(INFRACLUSTER_NAMESPACE)"
            - "--infra-cluster-labels=$(INFRACLUSTER_LABELS)"
            - "--tenant-cluster-kubeconfig=/var/run/secrets/tenantcluster/value"
            - "--run-node-service=false"
            - "--run-controller-service=true"
            - "--v=5"
          ports:
            - name: healthz
              containerPort: 10301
              protocol: TCP
          env:
            - name: CSI_ENDPOINT
              value: unix:///var/lib/csi/sockets/pluginproxy/csi.sock
            - name: KUBE_NODE_NAME
              valueFrom:
                fieldRef:
                  fieldPath: spec.nodeName
            - name: INFRACLUSTER_NAMESPACE
              valueFrom:
                configMapKeyRef:
                  name: driver-config
                  key: infraClusterNamespace
            - name: INFRACLUSTER_LABELS
              valueFrom:
                configMapKeyRef:
                  name: driver-config
                  key: infraClusterLabels
            - name: INFRA_STORAGE_CLASS_ENFORCEMENT
              valueFrom:
                configMapKeyRef:
                  name: driver-config
                  key: infraStorageClassEnforcement
                  optional: true
          volumeMounts:
            - name: socket-dir
              mountPath: /var/lib/csi/sockets/pluginproxy/
            - name: tenantcluster
              mountPath: "/var/run/secrets/tenantcluster"
          resources:
            requests:
              memory: 50Mi
              cpu: 10m
        - name: csi-provisioner
          image: quay.io/openshift/origin-csi-external-provisioner:latest
          args:
            - "--csi-address=$(ADDRESS)"
            - "--default-fstype=ext4"
            - "--kubeconfig=/var/run/secrets/tenantcluster/value"
            - "--v=5"
            - "--timeout=3m"
            - "--retry-interval-max=1m"
          env:
            - name: ADDRESS
              value: /var/lib/csi/sockets/pluginproxy/csi.sock
          volumeMounts:
            - name: socket-dir
              mountPath: /var/lib/csi/sockets/pluginproxy/
            - name: tenantcluster
              mountPath: "/var/run/secrets/tenantcluster"
        - name: csi-attacher
          image: quay.io/openshift/origin-csi-external-attacher:latest
          args:
            - "--csi-address=$(ADDRESS)"
            - "--kubeconfig=/var/run/secrets/tenantcluster/value"
            - "--v=5"
            - "--timeout=3m"
            - "--retry-interval-max=1m"
          env:
            - name: ADDRESS
              value: /var/lib/csi/sockets/pluginproxy/csi.sock
          volumeMounts:
            - name: socket-dir
              mountPath: /var/lib/csi/sockets/pluginproxy/
            - name: tenantcluster
              mountPath: "/var/run/secrets/tenantcluster"
          resources:
            requests:
              memory: 50Mi
              cpu: 10m
        - name: csi-liveness-probe
          image: quay.io/openshift/origin-csi-livenessprobe:latest
          args:
            - "--csi-address=/csi/csi.sock"
            - "--probe-timeout=3s"
            - "--health-port=10301"
          volumeMounts:
            - name: socket-dir
              mountPath: /csi
            - name: tenantcluster
              mountPath: "/var/run/secrets/tenantcluster"
          resources:
            requests:
              memory: 50Mi
              cpu: 10m
        - name: csi-snapshotter
          args:
            - "--v=5"
            - "--csi-address=/csi/csi.sock"
            - "--kubeconfig=/var/run/secrets/tenantcluster/value"
            - "--timeout=3m"
          image: k8s.gcr.io/sig-storage/csi-snapshotter:v4.2.1
          imagePullPolicy: IfNotPresent
          terminationMessagePath: /dev/termination-log
          terminationMessagePolicy: File
          volumeMounts:
            - mountPath: /csi
              name: socket-dir
            - name: tenantcluster
              mountPath: "/var/run/secrets/tenantcluster"
          resources:
            requests:
              memory: 20Mi
              cpu: 10m
        - name: csi-resizer
          image: registry.k8s.io/sig-storage/csi-resizer:v1.13.1
          args:
            - "-csi-address=/csi/csi.sock"
            - "-kubeconfig=/var/run/secrets/tenantcluster/value"
            - "-v=5"
            - "-timeout=3m"
            - '-handle-volume-inuse-error=false'
          volumeMounts:
            - name: socket-dir
              mountPath: /csi
            - name: tenantcluster
              mountPath: "/var/run/secrets/tenantcluster"
          resources:
            requests:
              cpu: 10m
              memory: 20Mi
          securityContext:
            capabilities:
              drop:
                - ALL
      volumes:
        - name: socket-dir
          emptyDir: {}
        - name: tenantcluster
          secret:
            secretName: kvcluster-kubeconfig

oc -n $NAMESPACE apply -f controller-infra.yaml

KubeVirt CSI Driver installation on the Tenant-Cluster

• Create a new project named e.g. kubevirt-csi-driver:

oc new-project kubevirt-csi-driver

• Annotate the nodes with the annotations csi.kubevirt.io/infra-vm-name=${node} as well as csi.kubevirt.io/infra-vm-namespace=$NAMESPACE.

If the annotations doesn't exist, it'll fail with:

Warning

F0218 08:58:00.631541 1 kubevirt-csi-driver.go:32] Failed to initialize driver: failed to configure node service: failed to resolve infra VM for node "rguske-ocp42-cp1": vmName or vmNamespace not found. Ensure the node has a valid providerID (kubevirt://) with annotation 'cluster.x-k8s.io/cluster-namespace', or set annotations 'csi.kubevirt.io/infra-vm-name' and 'csi.kubevirt.io/infra-vm-namespace' on the node. After setting the annotations, restart the kubevirt-csi-node pod on this node for the changes to take effect

Resolution on GitHub:

• Add annotation-based fallback for infra VM node ID resolution

for node in $(oc get nodes -o jsonpath='{.items[*].metadata.name}'); do echo ${node} ; oc annotate node/${node} csi.kubevirt.io/infra-vm-name=${node} --overwrite ; done

for node in $(oc get nodes -o jsonpath='{.items[*].metadata.name}'); do echo ${node} ; oc annotate node/${node} csi.kubevirt.io/infra-vm-namespace=$NAMESPACE --overwrite ; done

• Install the complete CSI Driver:

Downloadcontroller-tenant

curl -L -O https://examples.openshift.pub/kubevirt/kubevirt-csi-driver/kubevirt-csi//controller-tenant.yaml

apiVersion: storage.k8s.io/v1
kind: CSIDriver
metadata:
  name: csi.kubevirt.io
spec:
  attachRequired: true
  podInfoOnMount: true
  fsGroupPolicy: ReadWriteOnceWithFSType
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: kubevirt-csi-controller-sa
  namespace: kubevirt-csi-driver
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: kubevirt-csi-controller-cr
rules:
  - apiGroups: ['']
    resources: ['persistentvolumes']
    verbs: ['create', 'delete', 'get', 'list', 'watch', 'update', 'patch']
  - apiGroups: ['']
    resources: ['secrets']
    verbs: ['get', 'list']
  - apiGroups: ['']
    resources: ['persistentvolumeclaims']
    verbs: ['get', 'list', 'watch', 'update']
  - apiGroups: [""]
    resources: ["persistentvolumeclaims/status"]
    verbs: ["update", "patch"]
  - apiGroups: ['']
    resources: ['nodes']
    verbs: ['get', 'list', 'watch']
  - apiGroups: ['storage.k8s.io']
    resources: ['volumeattachments']
    verbs: ['get', 'list', 'watch', 'update', 'patch']
  - apiGroups: ['storage.k8s.io']
    resources: ['storageclasses']
    verbs: ['get', 'list', 'watch']
  - apiGroups: ['csi.storage.k8s.io']
    resources: ['csidrivers']
    verbs: ['get', 'list', 'watch', 'update', 'create']
  - apiGroups: ['']
    resources: ['events']
    verbs: ['list', 'watch', 'create', 'update', 'patch']
  - apiGroups: ["snapshot.storage.k8s.io"]
    resources: ["volumesnapshotclasses"]
    verbs: ["get", "list", "watch"]
  - apiGroups: ["snapshot.storage.k8s.io"]
    resources: ["volumesnapshotcontents"]
    verbs: ["create", "get", "list", "watch", "update", "delete"]
  - apiGroups: ["snapshot.storage.k8s.io"]
    resources: ["volumesnapshots"]
    verbs: ["get", "list", "watch", "update"]
  - apiGroups: ["snapshot.storage.k8s.io"]
    resources: ["volumesnapshots/status"]
    verbs: ["update"]
  - apiGroups: ["storage.k8s.io"]
    resources: ["volumeattachments/status"]
    verbs: ["get", "list", "watch", "update", "patch"]
  - apiGroups: ["storage.k8s.io"]
    resources: ["csinodes"]
    verbs: ["get", "list", "watch"]
  - apiGroups: ["security.openshift.io"]
    resources: ["securitycontextconstraints"]
    verbs: ["use"]
    resourceNames: ["privileged"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: kubevirt-csi-controller-binding
subjects:
  - kind: ServiceAccount
    name: kubevirt-csi-controller-sa
    namespace: kubevirt-csi-driver
roleRef:
  kind: ClusterRole
  name: kubevirt-csi-controller-cr
  apiGroup: rbac.authorization.k8s.io
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: kubevirt-csi-node-sa
  namespace: kubevirt-csi-driver
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: kubevirt-csi-snapshot-sa
  namespace: kubevirt-csi-driver
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: kubevirt-csi-node-cr
rules:
  - apiGroups: [""]
    resources: ["persistentvolumes"]
    verbs: ["get", "list", "watch", "update", "create", "delete"]
  - apiGroups: [""]
    resources: ["persistentvolumeclaims"]
    verbs: ["get", "list", "watch", "update"]
  - apiGroups: ["storage.k8s.io"]
    resources: ["storageclasses"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["nodes"]
    verbs: ["get", "list", "watch", "update", "patch"]
  - apiGroups: ["csi.storage.k8s.io"]
    resources: ["csinodeinfos"]
    verbs: ["get", "list", "watch"]
  - apiGroups: ["storage.k8s.io"]
    resources: ["csinodes"]
    verbs: ["get", "list", "watch"]
  - apiGroups: ["storage.k8s.io"]
    resources: ["volumeattachments"]
    verbs: ["get", "list", "watch", "update"]
  - apiGroups: ["storage.k8s.io"]
    resources: ["volumeattachments/status"]
    verbs: ["get", "list", "watch", "update", "patch"]
  - apiGroups: [""]
    resources: ["events"]
    verbs: ["list", "watch", "create", "update", "patch"]
  - apiGroups: ["security.openshift.io"]
    resources: ["securitycontextconstraints"]
    verbs: ["use"]
    resourceNames: ["privileged"]
  - apiGroups: ["snapshot.storage.k8s.io"]
    resources: ["volumesnapshotclasses"]
    verbs: ["list"]
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: external-snapshotter-runner
rules:
  - apiGroups: [""]
    resources: ["events"]
    verbs: ["list", "watch", "create", "update", "patch"]
  - apiGroups: ["snapshot.storage.k8s.io"]
    resources: ["volumesnapshotclasses"]
    verbs: ["get", "list", "watch"]
  - apiGroups: ["snapshot.storage.k8s.io"]
    resources: ["volumesnapshotcontents"]
    verbs: ["create", "get", "list", "watch", "update", "delete", "patch"]
  - apiGroups: ["snapshot.storage.k8s.io"]
    resources: ["volumesnapshotcontents/status"]
    verbs: ["update", "patch"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: kubevirt-csi-node-binding
subjects:
  - kind: ServiceAccount
    name: kubevirt-csi-node-sa
    namespace: kubevirt-csi-driver
roleRef:
  kind: ClusterRole
  name: kubevirt-csi-node-cr
  apiGroup: rbac.authorization.k8s.io
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: csi-snapshotter-role
subjects:
  - kind: ServiceAccount
    name: kubevirt-csi-snapshot-sa
    namespace: kubevirt-csi-driver
roleRef:
  kind: ClusterRole
  # change the name also here if the ClusterRole gets renamed
  name: external-snapshotter-runner
  apiGroup: rbac.authorization.k8s.io
---
kind: DaemonSet
apiVersion: apps/v1
metadata:
  name: kubevirt-csi-node
  namespace: kubevirt-csi-driver
spec:
  selector:
    matchLabels:
      app: kubevirt-csi-driver
  updateStrategy:
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: kubevirt-csi-driver
    spec:
      serviceAccount: kubevirt-csi-node-sa
      priorityClassName: system-node-critical
      tolerations:
        - operator: Exists
      containers:
        - name: csi-driver
          securityContext:
            privileged: true
            allowPrivilegeEscalation: true
          imagePullPolicy: Always
          image: quay.io/kubevirt/kubevirt-csi-driver:latest
          args:
            - "--endpoint=unix:/csi/csi.sock"
            - "--node-name=$(KUBE_NODE_NAME)"
            - "--run-node-service=true"
            - "--run-controller-service=false"
            - "--v=5"
          env:
            - name: KUBE_NODE_NAME
              valueFrom:
                fieldRef:
                  fieldPath: spec.nodeName
          volumeMounts:
            - name: kubelet-dir
              mountPath: /var/lib/kubelet
              mountPropagation: "Bidirectional"
            - name: plugin-dir
              mountPath: /csi
            - name: device-dir
              mountPath: /dev
            - name: udev
              mountPath: /run/udev
          ports:
            - name: healthz
              containerPort: 10300
              protocol: TCP
          livenessProbe:
            httpGet:
              path: /healthz
              port: healthz
            initialDelaySeconds: 10
            timeoutSeconds: 3
            periodSeconds: 10
            failureThreshold: 5
          resources:
            requests:
              memory: 50Mi
              cpu: 10m
        - name: csi-node-driver-registrar
          image: quay.io/openshift/origin-csi-node-driver-registrar:latest
          args:
            - "--csi-address=$(ADDRESS)"
            - "--kubelet-registration-path=$(DRIVER_REG_SOCK_PATH)"
            - "--v=5"
          lifecycle:
            preStop:
              exec:
                command: ["/bin/sh", "-c", "rm -rf /registration/csi.kubevirt.io-reg.sock /csi/csi.sock"]
          env:
            - name: ADDRESS
              value: /csi/csi.sock
            - name: DRIVER_REG_SOCK_PATH
              value: /var/lib/kubelet/plugins/csi.kubevirt.io/csi.sock
          volumeMounts:
            - name: plugin-dir
              mountPath: /csi
            - name: registration-dir
              mountPath: /registration
          resources:
            requests:
              memory: 20Mi
              cpu: 5m
        - name: csi-liveness-probe
          image: quay.io/openshift/origin-csi-livenessprobe:latest
          args:
            - "--csi-address=/csi/csi.sock"
            - "--probe-timeout=3s"
            - "--health-port=10300"
          volumeMounts:
            - name: plugin-dir
              mountPath: /csi
          resources:
            requests:
              memory: 20Mi
              cpu: 5m
      volumes:
        - name: kubelet-dir
          hostPath:
            path: /var/lib/kubelet
            type: Directory
        - name: plugin-dir
          hostPath:
            path: /var/lib/kubelet/plugins/csi.kubevirt.io/
            type: DirectoryOrCreate
        - name: registration-dir
          hostPath:
            path: /var/lib/kubelet/plugins_registry/
            type: Directory
        - name: device-dir
          hostPath:
            path: /dev
            type: Directory
        - name: udev
          hostPath:
            path: /run/udev
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: driver-config
  namespace: kubevirt-csi-driver
data:
  infraClusterNamespace: rguske-ocp42
  infraClusterLabels: csi-driver/cluster=rguske-ocp42
---
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: kubevirt
  annotations:
    storageclass.kubernetes.io/is-default-class: "true"
provisioner: csi.kubevirt.io
parameters:
  infraStorageClassName: standard
  bus: scsi
---
apiVersion: snapshot.storage.k8s.io/v1
kind: VolumeSnapshotClass
metadata:
  name: kubevirt-csi-snapclass
driver: csi.kubevirt.io
deletionPolicy: Delete

oc apply -f controler-tenant.yaml

In case the above mentioned error message appears anyway, delete the pods:

for pod in $(oc get pods -o jsonpath='{.items[*].metadata.name}'); do echo ${pod} ; oc delete pod ${pod} ; done

Deploy Example Pod with PVC

• create the pvc

oc create -f - <<EOF
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: 1g-kubevirt-disk
spec:
  storageClassName: $STORAGECLASS
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi
EOF

• deploy the pod

oc create -f - <<EOF
apiVersion: v1
kind: Pod
metadata:
  name: testpodwithcsi
spec:
  containers:
  - image: docker.io/busybox:latest
    name: testpodwithcsi
    command: ["sh", "-c", "while true; do ls -la /opt; echo this file system was made availble using kubevirt-csi-driver; mktmp /opt/test-XXXXXX; sleep 1m; done"]
    imagePullPolicy: Always
    volumeMounts:
    - name: pv0002
      mountPath: "/opt"
  volumes:
  - name: pv0002
    persistentVolumeClaim:
      claimName: 1g-kubevirt-disk
EOF

Errors along the way

Cannot update subresources

Warning

I0218 09:56:57.327140 1 controller.go:456] failed adding volume pvc-4b21e668-de61-4df7-b20d-fde66144d747 to VM rguske-ocp42-n3, retrying, err: virtualmachines.subresources.kubevirt.io "rguske-ocp42-n3" is forbidden: User "system:serviceaccount:rguske-ocp42:kubevirt-csi" cannot update resource "virtualmachines/addvolume" in API group "subresources.kubevirt.io" in the namespace "rguske-ocp42"

The ServiceAccount (infra-cluster-serviceaccount.yaml) needed to be adjusted with the appropriate priviledges (resources + verbs). After fixing it, the volume could be attached:

Info

I0218 10:03:06.890836 1 server.go:121] /csi.v1.Controller/ControllerPublishVolume called with request: {"node_id":"rguske-ocp42/rguske-ocp42-n3","volume_capability":{"AccessType":{"Mount":{"fs_type":"ext4"}},"access_mode":{"mode":1}},"volume_context":{"bus":"scsi","serial":"c462f25e-3ba7-4f12-96ef-8013aee36760","storage.kubernetes.io/csiProvisionerIdentity":"1771401314268-2085-csi.kubevirt.io"},"volume_id":"pvc-c08d2bd3-c43c-4157-82ab-3fa81464bbd0"} I0218 10:03:06.901504 1 controller.go:403] Attaching DataVolume pvc-c08d2bd3-c43c-4157-82ab-3fa81464bbd0 to Node ID rguske-ocp42/rguske-ocp42-n3 I0218 10:03:06.907020 1 controller.go:430] Start attaching DataVolume pvc-c08d2bd3-c43c-4157-82ab-3fa81464bbd0 to VM rguske-ocp42-n3. Volume name: pvc-c08d2bd3-c43c-4157-82ab-3fa81464bbd0. Serial: c462f25e-3ba7-4f12-96ef-8013aee36760. Bus: scsi

Pod can't mount PVC

Warning

AttachVolume.Attach failed for volume "pvc-eb7ff8dc-ed38-473f-a5ea-4baa4686b0b9" : timed out waiting for external-attacher of csi.kubevirt.io CSI driver to attach volume pvc-eb7ff8dc-ed38-473f-a5ea-4baa4686b0b9

furthermore:

Warning

MountVolume.MountDevice failed for volume "pvc-eb7ff8dc-ed38-473f-a5ea-4baa4686b0b9" : rpc error: code = Unknown desc = couldn't find device by serial id

Existing KC articles:

• Workload on HostedControlPlane with Kubevirt provider fail to start after worker Virtual Machine reboot, "MountDevice failed for volume: couldn't find device by serial"

On the Tenant CLuster

oc get pv
NAME                                       CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                           STORAGECLASS   VOLUMEATTRIBUTESCLASS   REASON   AGE
pvc-c08d2bd3-c43c-4157-82ab-3fa81464bbd0   1Gi        RWO            Delete           Bound    default/1g-kubevirt-disk        kubevirt       <unset>                          89m
pvc-eb7ff8dc-ed38-473f-a5ea-4baa4686b0b9   2Gi        RWO            Delete           Bound    rguske-tests/1g-kubevirt-disk   kubevirt       <unset>                          12m

oc get pvc
NAME               STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   VOLUMEATTRIBUTESCLASS   AGE
1g-kubevirt-disk   Bound    pvc-c08d2bd3-c43c-4157-82ab-3fa81464bbd0   1Gi        RWO            kubevirt       <unset>                 43h

PVC_UID=eb7ff8dc-ed38-473f-a5ea-4baa4686b0b9

PV=$(oc get pv -o jsonpath='{range .items[?(@.spec.claimRef.uid=="'"$PVC_UID"'")]}{.metadata.name}{"\n"}{end}')

oc get pv "$PV" -o jsonpath='{.spec.csi.volumeHandle}{"\n"}'
pvc-eb7ff8dc-ed38-473f-a5ea-4baa4686b0b9

NODE=rguske-ocp42-n3

oc debug node/$NODE -- chroot /host bash -lc '
  ls -l /dev/disk/by-id | sed -e "s#^#BY-ID: #";
  echo;
  lsblk -o NAME,KNAME,TYPE,SIZE,MODEL,SERIAL'
Starting pod/rguske-ocp42-n3-debug-w9xks ...
To use host binaries, run `chroot /host`. Instead, if you need to access host namespaces, run `nsenter -a -t 1`.
ls: cannot access '/dev/disk/by-id': No such file or directory

NAME   KNAME TYPE   SIZE MODEL SERIAL
loop0  loop0 loop   5.8M
vda    vda   disk   120G
├─vda1 vda1  part     1M
├─vda2 vda2  part   127M
├─vda3 vda3  part   384M
└─vda4 vda4  part 119.5G

Removing debug pod ...

oc debug node/$NODE -- chroot /host bash -lc '
  echo "== SCSI hosts ==";
  ls -l /sys/class/scsi_host 2>/dev/null || echo "NO_SCSI_HOST";
  echo;
  echo "== PCI storage controllers ==";
  lspci -nn | egrep -i "scsi|storage|virtio" || true;
  echo;
  echo "== Kernel messages (storage) ==";
  dmesg | egrep -i "scsi|virtio|block|sd[a-z]" | tail -n 50 || true;
'
Starting pod/rguske-ocp42-n3-debug-8qwmm ...
To use host binaries, run `chroot /host`. Instead, if you need to access host namespaces, run `nsenter -a -t 1`.
== SCSI hosts ==
total 0
lrwxrwxrwx. 1 root root 0 Feb 17 08:47 host0 -> ../../devices/pci0000:00/0000:00:03.2/0000:0b:00.0/virtio1/host0/scsi_host/host0
lrwxrwxrwx. 1 root root 0 Feb 17 08:47 host1 -> ../../devices/pci0000:00/0000:00:1f.2/ata1/host1/scsi_host/host1
lrwxrwxrwx. 1 root root 0 Feb 17 08:47 host2 -> ../../devices/pci0000:00/0000:00:1f.2/ata2/host2/scsi_host/host2
lrwxrwxrwx. 1 root root 0 Feb 17 08:47 host3 -> ../../devices/pci0000:00/0000:00:1f.2/ata3/host3/scsi_host/host3
lrwxrwxrwx. 1 root root 0 Feb 17 08:47 host4 -> ../../devices/pci0000:00/0000:00:1f.2/ata4/host4/scsi_host/host4
lrwxrwxrwx. 1 root root 0 Feb 17 08:47 host5 -> ../../devices/pci0000:00/0000:00:1f.2/ata5/host5/scsi_host/host5
lrwxrwxrwx. 1 root root 0 Feb 17 08:47 host6 -> ../../devices/pci0000:00/0000:00:1f.2/ata6/host6/scsi_host/host6

== PCI storage controllers ==
01:00.0 Ethernet controller [0200]: Red Hat, Inc. Virtio 1.0 network device [1af4:1041] (rev 01)
0b:00.0 SCSI storage controller [0100]: Red Hat, Inc. Virtio 1.0 SCSI [1af4:1048] (rev 01)
0c:00.0 Communication controller [0780]: Red Hat, Inc. Virtio 1.0 console [1af4:1043] (rev 01)
0d:00.0 SCSI storage controller [0100]: Red Hat, Inc. Virtio 1.0 block device [1af4:1042] (rev 01)
0e:00.0 Unclassified device [00ff]: Red Hat, Inc. Virtio 1.0 memory balloon [1af4:1045] (rev 01)
0f:00.0 Unclassified device [00ff]: Red Hat, Inc. Virtio 1.0 RNG [1af4:1044] (rev 01)

== Kernel messages (storage) ==
[    0.020071] ACPI: RSDP 0x00000000000F54A0 000014 (v00 BOCHS )
[    0.020078] ACPI: RSDT 0x000000007FFE2E4F 000038 (v01 BOCHS  BXPC     00000001 BXPC 00000001)
[    0.020092] ACPI: DSDT 0x000000007FFDF5C0 0033B7 (v01 BOCHS  BXPC     00000001 BXPC 00000001)
[    0.020118] ACPI: Reserving DSDT table memory at [mem 0x7ffdf5c0-0x7ffe2976]
[    0.333351] x86/mm: Memory block size: 128MB
[    0.379458] ACPI: Enabled 2 GPEs in block 00 to 3F
[    0.706086] SCSI subsystem initialized
[    1.134417] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 246)
[    2.305506] systemd[1]: Listening on Open-iSCSI iscsid Socket.
[    2.306895] systemd[1]: Listening on Open-iSCSI iscsiuio Socket.
[    2.315245] systemd[1]: Check That Initrd Matches Kernel was skipped because of an unmet condition check (ConditionPathIsDirectory=!/usr/lib/modules/5.14.0-570.83.1.el9_6.x86_64).
[    2.440742] Loading iSCSI transport class v2.0-870.
[    2.454825] iscsi: registered transport (iser)
[    2.644810] iscsi: registered transport (tcp)
[    2.682132] iscsi: registered transport (qla4xxx)
[    2.682698] QLogic iSCSI HBA Driver
[    2.694396] libcxgbi:libcxgbi_init_module: Chelsio iSCSI driver library libcxgbi v0.9.1-ko (Apr. 2015)
[    2.762615] Chelsio T4-T6 iSCSI Driver cxgb4i v0.9.5-ko (Apr. 2015)
[    2.763228] iscsi: registered transport (cxgb4i)
[    2.785001] QLogic NetXtreme II iSCSI Driver bnx2i v2.7.10.1 (Jul 16, 2014)
[    2.785574] iscsi: registered transport (bnx2i)
[    2.799647] iscsi: registered transport (be2iscsi)
[    2.800127] In beiscsi_module_init, tt=00000000e3e2ce31
[    3.463881] virtio_blk virtio3: 1/0/0 default/read/poll queues
[    3.466980] virtio_blk virtio3: [vda] 251658240 512-byte logical blocks (129 GB/120 GiB)
[    3.525550] scsi host0: Virtio SCSI HBA
[    3.567813] virtio_net virtio0 enp1s0: renamed from eth0
[    3.573555] scsi host1: ahci
[    3.573805] scsi host2: ahci
[    3.574676] scsi host3: ahci
[    3.574949] scsi host4: ahci
[    3.575552] scsi host5: ahci
[    3.575970] scsi host6: ahci
[    4.985041] systemd[1]: iscsid.socket: Deactivated successfully.
[    4.985652] systemd[1]: Closed Open-iSCSI iscsid Socket.
[    4.998835] systemd[1]: iscsiuio.socket: Deactivated successfully.
[    4.999420] systemd[1]: Closed Open-iSCSI iscsiuio Socket.
[   10.150956] virtio_net virtio0 enp1s0: entered promiscuous mode
[   10.487925] virtio_net virtio0 enp1s0: left promiscuous mode
[   15.282762] virtio_net virtio0 enp1s0: entered promiscuous mode
[   15.835818] virtio_net virtio0 enp1s0: left promiscuous mode
[   15.840535] virtio_net virtio0 enp1s0: entered promiscuous mode

Removing debug pod ...

On the Infra-Cluster

Check the controller logs oc logs deploy/kubevirt-csi-controller -f

I0218 10:14:27.668076       1 controller.go:241] creating new DataVolume rguske-ocp42/pvc-eb7ff8dc-ed38-473f-a5ea-4baa4686b0b9
I0218 10:14:27.686963       1 server.go:126] /csi.v1.Controller/CreateVolume returned with response: {"volume":{"capacity_bytes":2147483648,"volume_context":{"bus":"scsi","serial":"5bcccca9-2b42-4de8-8b62-a1e72ab38b58"},"volume_id":"pvc-eb7ff8dc-ed38-473f-a5ea-4baa4686b0b9"}}
I0218 10:15:29.630238       1 server.go:121] /csi.v1.Controller/ControllerPublishVolume called with request: {"node_id":"rguske-ocp42/rguske-ocp42-n3","volume_capability":{"AccessType":{"Mount":{"fs_type":"ext4"}},"access_mode":{"mode":1}},"volume_context":{"bus":"scsi","serial":"5bcccca9-2b42-4de8-8b62-a1e72ab38b58","storage.kubernetes.io/csiProvisionerIdentity":"1771401314268-2085-csi.kubevirt.io"},"volume_id":"pvc-eb7ff8dc-ed38-473f-a5ea-4baa4686b0b9"}
I0218 10:15:29.639135       1 controller.go:403] Attaching DataVolume pvc-eb7ff8dc-ed38-473f-a5ea-4baa4686b0b9 to Node ID rguske-ocp42/rguske-ocp42-n3
I0218 10:15:29.644847       1 controller.go:430] Start attaching DataVolume pvc-eb7ff8dc-ed38-473f-a5ea-4baa4686b0b9 to VM rguske-ocp42-n3. Volume name: pvc-eb7ff8dc-ed38-473f-a5ea-4baa4686b0b9. Serial: 5bcccca9-2b42-4de8-8b62-a1e72ab38b58. Bus: scsi
E0218 10:17:29.674335       1 controller.go:468] volume pvc-eb7ff8dc-ed38-473f-a5ea-4baa4686b0b9 failed to be ready in time (2m) in VM rguske-ocp42-n3, client rate limiter Wait returned an error: context deadline exceeded
E0218 10:17:29.674361       1 server.go:124] /csi.v1.Controller/ControllerPublishVolume returned with error: client rate limiter Wait returned an error: context deadline exceeded

Checking the scsi controller which is used when hot-plugging a PVC:

oc -n rguske-ocp42 get vmi rguske-ocp42-n3 -o yaml | sed -n '1,140p'
apiVersion: kubevirt.io/v1
kind: VirtualMachineInstance
metadata:

[...]

spec:
  architecture: amd64
  domain:
    cpu:
      cores: 1
      maxSockets: 24
      model: IvyBridge-v2
      sockets: 6
      threads: 1
    devices:
      disks:
      - bootOrder: 1
        disk:
          bus: virtio
        name: rootdisk
      - disk:
          bus: scsi
        name: pvc-eb7ff8dc-ed38-473f-a5ea-4baa4686b0b9
        serial: 5bcccca9-2b42-4de8-8b62-a1e72ab38b58
      interfaces:
      - bridge: {}
        macAddress: 02:06:b6:02:4d:b6
        model: virtio
        name: coe-bridge
        state: up
      rng: {}

[...]

  volumes:
  - dataVolume:
      name: rguske-ocp42-n3-rootdisk-mig-62fcqw-mig-ctpb
    name: rootdisk
  - dataVolume:
      hotpluggable: true
      name: pvc-eb7ff8dc-ed38-473f-a5ea-4baa4686b0b9
    name: pvc-eb7ff8dc-ed38-473f-a5ea-4baa4686b0b9
[...]

The hotplug disk is attached as disk.bus: scsi and the serial is set correctly (5bcccca9-…).

But inside the guest you never see a second block device (only vda), so the CSI node can’t possibly find /dev/disk/by-id/.

NODE=rguske-ocp42-n3

oc debug node/$NODE -- chroot /host bash -lc '
  ls -l /dev/disk/by-id | sed -e "s#^#BY-ID: #";
  echo;
  lsblk -o NAME,KNAME,TYPE,SIZE,MODEL,SERIAL'
Starting pod/rguske-ocp42-n3-debug-w9xks ...
To use host binaries, run `chroot /host`. Instead, if you need to access host namespaces, run `nsenter -a -t 1`.
ls: cannot access '/dev/disk/by-id': No such file or directory

NAME   KNAME TYPE   SIZE MODEL SERIAL
loop0  loop0 loop   5.8M
vda    vda   disk   120G
├─vda1 vda1  part     1M
├─vda2 vda2  part   127M
├─vda3 vda3  part   384M
└─vda4 vda4  part 119.5G

Removing debug pod ...

StorageClass fixed the Issue

I changed the StorageClass from odf-replica-two-block to ocs-storagecluster-ceph-rbd-virtualization. The difference between both sc's were the volumeBindingMode:. The working one has volumeBindingMode: Immediate.

kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
  annotations:
    storageclass.kubernetes.io/is-default-class: 'true'
provisioner: csi.kubevirt.io
parameters:
  bus: scsi
  infraStorageClassName: ocs-storagecluster-ceph-rbd-virtualization
reclaimPolicy: Delete
volumeBindingMode: Immediate

Deployed the Pod with the PVC accordingly and:

I0218 11:07:36.353840       1 controller.go:163] Create Volume Request: name:"pvc-846e7c17-7655-41e1-9668-af5241c1aaad"  capacity_range:{required_bytes:1073741824}  volume_capabilities:{mount:{fs_type:"ext4"}  access_mode:{mode:SINGLE_NODE_WRITER}}  parameters:{key:"bus"  value:"scsi"}  parameters:{key:"infraStorageClassName"  value:"ocs-storagecluster-ceph-rbd-virtualization"}
I0218 11:07:36.358648       1 controller.go:241] creating new DataVolume rguske-ocp42/pvc-846e7c17-7655-41e1-9668-af5241c1aaad
I0218 11:07:36.378859       1 server.go:126] /csi.v1.Controller/CreateVolume returned with response: {"volume":{"capacity_bytes":1073741824,"volume_context":{"bus":"scsi","serial":"0778c423-7c23-49ec-98a5-957183a31639"},"volume_id":"pvc-846e7c17-7655-41e1-9668-af5241c1aaad"}}
I0218 11:08:27.138455       1 server.go:121] /csi.v1.Controller/ControllerPublishVolume called with request: {"node_id":"rguske-ocp42/rguske-ocp42-n3","volume_capability":{"AccessType":{"Mount":{"fs_type":"ext4"}},"access_mode":{"mode":1}},"volume_context":{"bus":"scsi","serial":"0778c423-7c23-49ec-98a5-957183a31639","storage.kubernetes.io/csiProvisionerIdentity":"1771401314268-2085-csi.kubevirt.io"},"volume_id":"pvc-846e7c17-7655-41e1-9668-af5241c1aaad"}
I0218 11:08:27.149209       1 controller.go:403] Attaching DataVolume pvc-846e7c17-7655-41e1-9668-af5241c1aaad to Node ID rguske-ocp42/rguske-ocp42-n3
I0218 11:08:27.154702       1 controller.go:430] Start attaching DataVolume pvc-846e7c17-7655-41e1-9668-af5241c1aaad to VM rguske-ocp42-n3. Volume name: pvc-846e7c17-7655-41e1-9668-af5241c1aaad. Serial: 0778c423-7c23-49ec-98a5-957183a31639. Bus: scsi

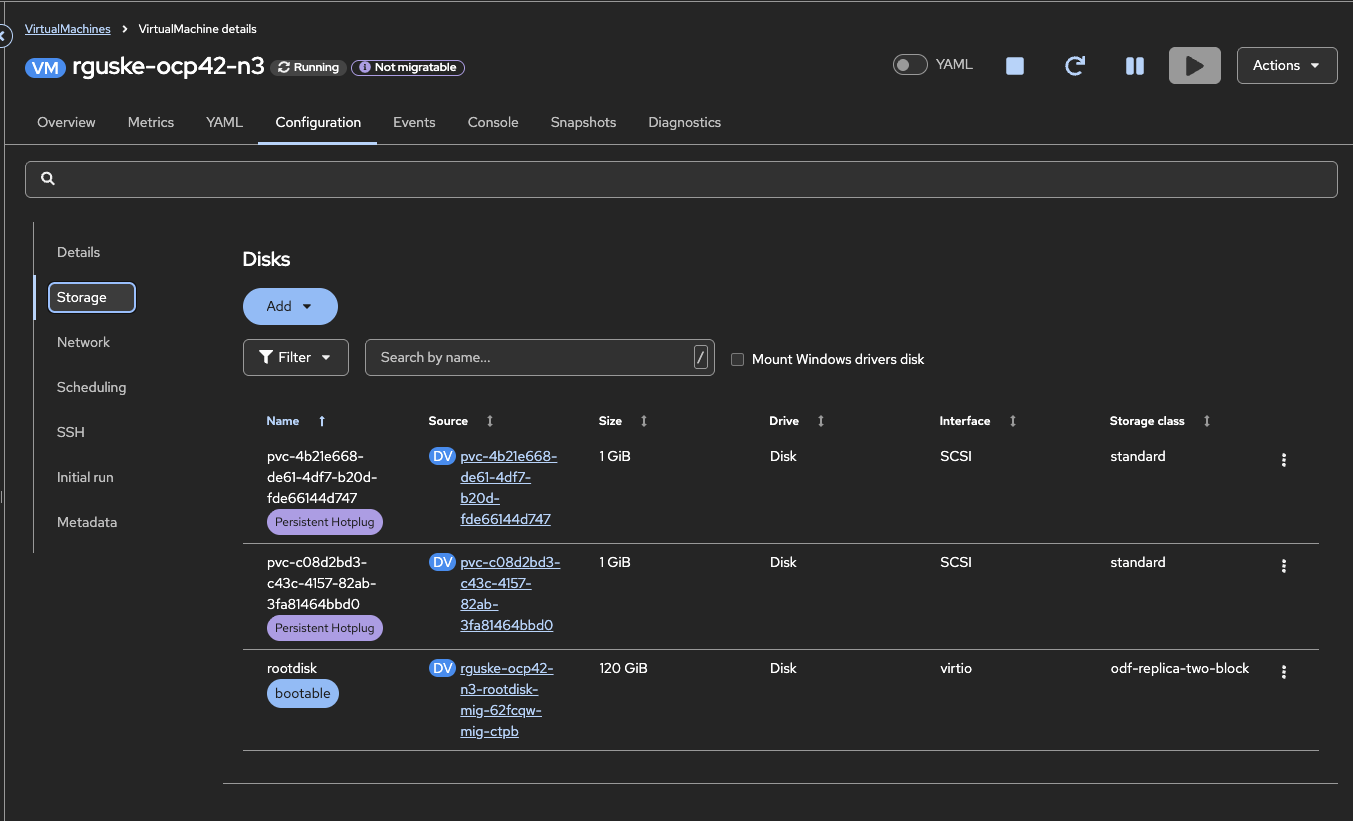

I0218 11:08:36.187861       1 controller.go:472] Successfully attached volume pvc-846e7c17-7655-41e1-9668-af5241c1aaad to VM rguske-ocp42-n3
I0218 11:08:36.187881       1 server.go:126] /csi.v1.Controller/ControllerPublishVolume returned with response: {}

StorageProfile Adjustments

Make sure that the AccessMode is configured for the StorageProfile otherwise, you'll get an error message for the respective DataVolume that the AccessMode is missing/not specified.

oc get storageprofiles.cdi.kubevirt.io kubevirt-ceph-rbd-virt -oyaml

apiVersion: cdi.kubevirt.io/v1beta1
kind: StorageProfile
metadata:
  name: kubevirt-ceph-rbd-virt
spec:
  claimPropertySets:
  - accessModes:
    - ReadWriteMany
    volumeMode: Block

VirtLauncher Pod can't be scheduled

0/6 nodes are available: 3 node(s) didn't match Pod's node affinity/selector, 3 node(s) had untolerated taint {node-role.kubernetes.io/master: }. preemption: 0/6 nodes are available: 6 Preemption is not helpful for scheduling.

Check KubeVirt specific labels:

oc get nodes rguske-ocp42-n1 rguske-ocp42-n2 rguske-ocp42-n3 --show-labels | egrep -o 'kubevirt\.io/schedulable=[^, ]+' || true

kubevirt.io/schedulable=true
kubevirt.io/schedulable=true
kubevirt.io/schedulable=true

oc describe pvc rhel-9-ivory-whippet-47-volume

Events:
  Type     Reason                       Age                   From                                                                                           Message
  ----     ------                       ----                  ----                                                                                           -------
  Warning  UnrecognizedDataSourceKind   3m5s (x5 over 3m5s)   volume-data-source-validator                                                                   The datasource for this PVC does not match any registered VolumePopulator
  Normal   Provisioning                 3m5s (x4 over 3m5s)   csi.kubevirt.io_kubevirt-csi-controller-6d7fc974b4-xr4hq_b59c3cb9-66f2-47c1-8f30-2aa3a4e7c7d6  External provisioner is provisioning volume for claim "rguske-tests/rhel-9-ivory-whippet-47-volume"
  Normal   Provisioning                 3m5s (x4 over 3m5s)   external-provisioner                                                                           Assuming an external populator will provision the volume
  Normal   VolumeSnapshotClassSelected  3m4s (x11 over 3m5s)  clone-populator                                                                                VolumeSnapshotClass selected according to StorageProfile kubevirt-csi-snapclass
  Normal   ExternalProvisioning         3s (x18 over 3m5s)    persistentvolume-controller                                                                    Waiting for a volume to be created either by the external provisioner 'csi.kubevirt.io' or manually by the system administrator. If volume creation is delayed, please verify that the provisioner is running and correctly registered.

VolumeSnapshotContent Error

Warning

Failed to check and update snapshot content: failed to add VolumeSnapshotBeingCreated annotation on the content snapcontent-4860fa21-076c-49b1-9cbf-5b66407fbe72: "snapshot controller failed to update snapcontent-4860fa21-076c-49b1-9cbf-5b66407fbe72 on API server: VolumeSnapshotContent.snapshot.storage.k8s.io \"snapcontent-4860fa21-076c-49b1-9cbf-5b66407fbe72\" is invalid: spec: Invalid value: \"object\": sourceVolumeMode is required once set"'

Check whether your CRDs enforce sourceVolumeMode:

oc get crd volumesnapshotcontents.snapshot.storage.k8s.io -o yaml | egrep -n 'sourceVolumeMode|required once set'

145:                - message: volumeHandle is required once set
147:                - message: snapshotHandle is required once set
153:              sourceVolumeMode:
162:                - message: sourceVolumeMode is immutable
235:            - message: sourceVolumeMode is required once set
236:              rule: '!has(oldSelf.sourceVolumeMode) || has(self.sourceVolumeMode)'

In Kubernetes snapshots, there are two relevant components:

• snapshot-controller (cluster-wide) - OpenShift provides this

oc -n openshift-cluster-storage-operator get deploy
NAME                               READY   UP-TO-DATE   AVAILABLE   AGE
cluster-storage-operator           1/1     1            1           3d1h
csi-snapshot-controller            2/2     2            2           3d1h
csi-snapshot-controller-operator   1/1     1            1           3d1h
volume-data-source-validator       1/1     1            1           3d1h

• csi-snapshotter sidecar – runs inside the CSI driver controller deployment in my case, the KubeVirt CSI driver I've installed in the tenant cluster. It watches VolumeSnapshot/VolumeSnapshotContent and performs the CSI snapshot RPCs, and updates VolumeSnapshotContent objects.

Solution

I've deleted the associated CRDs:

oc delete crd \
  volumesnapshots.snapshot.storage.k8s.io \
  volumesnapshotcontents.snapshot.storage.k8s.io \
  volumesnapshotclasses.snapshot.storage.k8s.io
customresourcedefinition.apiextensions.k8s.io "volumesnapshots.snapshot.storage.k8s.io" deleted
customresourcedefinition.apiextensions.k8s.io "volumesnapshotcontents.snapshot.storage.k8s.io" deleted
customresourcedefinition.apiextensions.k8s.io "volumesnapshotclasses.snapshot.storage.k8s.io" deleted

---

2026-02-25 2026-02-25 Contributors:
